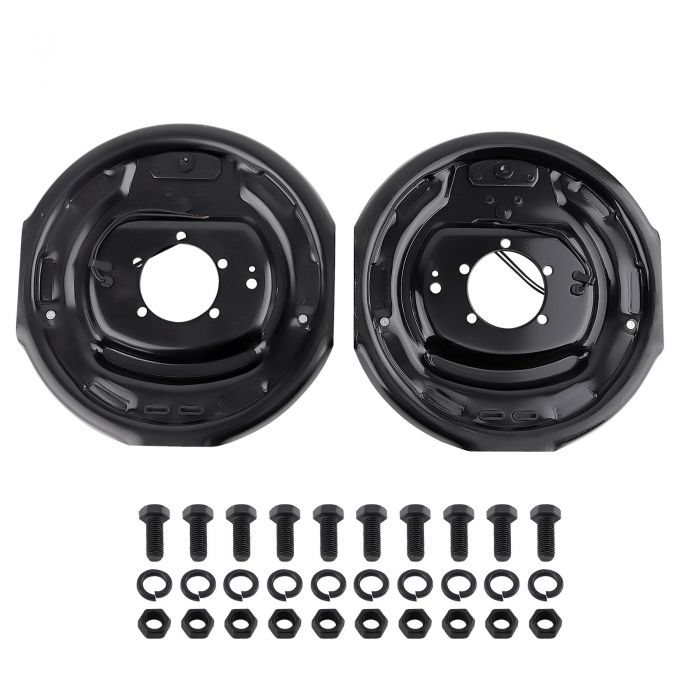

2x Driver Passenger Side 12" x 2" Electric Trailer Brake Assembly for 7000 lbs

SKU

300200017761

Description:

1 pair of 12" x 2" electric brake assembly and parts.

5 Hole installation. Works with Al-Ko, Dexter, and Quality Trailer Axles.

Works on 5,200 lb or 7,000 lb trailer axles with five-hole brake flanges.

Including installation hardware.

These are fully assembled back panels with boots, springs and magnets on them and can be installed at any time.

Specification:

Quantity: 2 Pcs (1 pair, 1 right + 1 left）replacement for two axles

Fit for: most 5,200 to 7,000 lbs axles

Condition: 100% Brand New

Dimensions: 12" x 2"

Center hole diameter: 3.25"(3-1/4")

Bolt Hole spacing: 2"

Wheel Bolt Pattern: 6 lug or 8 lug"

Mounting flange bolt pattern: 5 bolt

Wheel size: 14-1/2", 15", 16", and 16-1/2"

Axle rating: 7000 lbs

Replaces Dexter part numbers: K23-180-00 & K23-181-00

Premium quality, Adjustable Brakes

NOTE:
* Professional installation is highly recommended (No Instruction Included)
* For any needs please contact us.
