12V Fuel Pump Assemby Gasoline compatible for Chevy C1500 C2500 C3500 E3621S
Application
Compatible for Chevy C1500 V8 7.4L 1990-1993
compatible for Chevy C1500 V8 5.7L 1988-1995
compatible for Chevy C1500 V8 5.0L 1988-1995
compatible for Chevy C1500 V6 4.3L 1988-1995
compatible for Chevy C2500 V8 7.4L 1991-1993
compatible for Chevy C2500 V8 5.7L 1988-1995
compatible for Chevy C2500 V8 5.0L 1988-1995
compatible for Chevy C2500 V6 4.3L 1988-1995
compatible for Chevy C3500 V8 7.4L 1988-1993
compatible for Chevy C3500 V8 5.7L 1988-1995
compatible for Chevy K1500 V8 5.7L 1988-1995
compatible for Chevy K1500 V8 5.0L 1988-1995
compatible for Chevy K1500 V6 4.3L 1988-1995
compatible for Chevy K2500 V8 7.4L 1991-1993
compatible for Chevy K2500 V8 5.7L 1988-1995
compatible for Chevy K2500 V8 5.0L1988-1995
compatible for Chevy K2500 V6 4.3L 1988-1995
compatible for Chevy K3500 V8 7.4L 1988-1993
compatible for Chevy K3500 V8 5.7L 1988-1995
compatible for GMC C1500 V8 5.7L 1988-1995
compatible for GMC C1500 V8 5.0L 1988-1995
compatible for GMC C1500 V6 4.3L 1988-1995
compatible for GMC C2500 V8 7.4L 1991-1993
compatible for GMC C2500 V8 5.7L 1988-1995
compatible for GMC C2500 V8 5.0L 1988-1995
compatible for GMC C2500 V6 4.3L 1988-1995
compatible for GMC C3500 V8 7.4L 1988-1993
OE/Part number
E3621S,FLS1015,HP10000,P80000S,SP01A1HA,66300A,P80000S-7,402P3621S,19111396,25028499,25028611,SP9031M,66300,HP10022,HP10025,P1607H,E3902,25028499,25168719
Specification
Drive Type: Electrical
Fuel Type: Gasoline
Voltage(V): 12
Flow Rate(Gallons/Hour): ≥21.12
Pressure(MPa): 0.08
Weight(kg): 0.7964
Inlet Type: Threaded
Inlet Quantity: 1
Outlet Type: Threaded
Outlet Quantity: 1
Material: Plastic(POM)+Steel(Q235)
Housing Material: Plastic
Fuel Sending Unit Included: Yes
Fuel Pressure Sensor Included: No
Fuel Level Sensor Included: Yes
Float Included: Yes
Fuel Reservoir Included: No
Fuel Strainer Included: Yes
Seal Ring Included : Yes
Placement on Vehicle: Rear
Package included

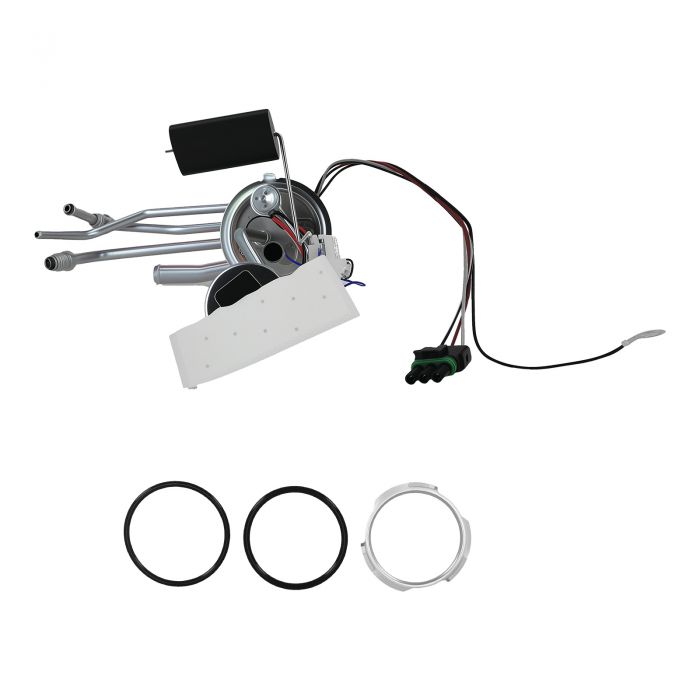

1X Fuel Pump Module Assembly (as shown in the picture)
Feature
1.Raw Material for key parts from same supplier as OE
2.Fuel Level Sensor Wet Durability Testing ≥ 1 Million times
3.Pressure Valve Durability Test ≥ 500,000 times
4.High temperature durability testing≥ 600 hours(60℃)
5.100% test
Note
1.Attached installation manual.
2.Professional Installation Is Highly Recommended.
3.Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.
