2 Adjustable Front Lift Struts compatible for Ford F-150 4WD 2014-2025 Monotube Suspension

SKU

300200011224

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Application

Compatible for Ford F-150 4WD 2014-2025

Specification

product type: lift strut with mono tube
lift height: 0-2" front
material:
top mount made from high quality steel with powder-coated finish
coil spring made from 55Crsi with powder-coated finish
spring collar made from Aluminum for height adjustment
threaded cylinder for height adjustment
with plating finish
lower mount made from Aluminum with surface anodic oxidation
Diameter of piston rod: F&R 18mm/0.70"
Piston diameter：F&R 46mm/1.81"
Outer cylinder diameter: 52mm/2.04"
Travel: 120mm=4.72"
extended length: 619mm=24.37"
collapsed length:499mm=19.64"
Nitrogen charged：yes
Spring rate 10.5kg/mm=587.97lbs/in
spring length: 355mm=13.97"

Package included

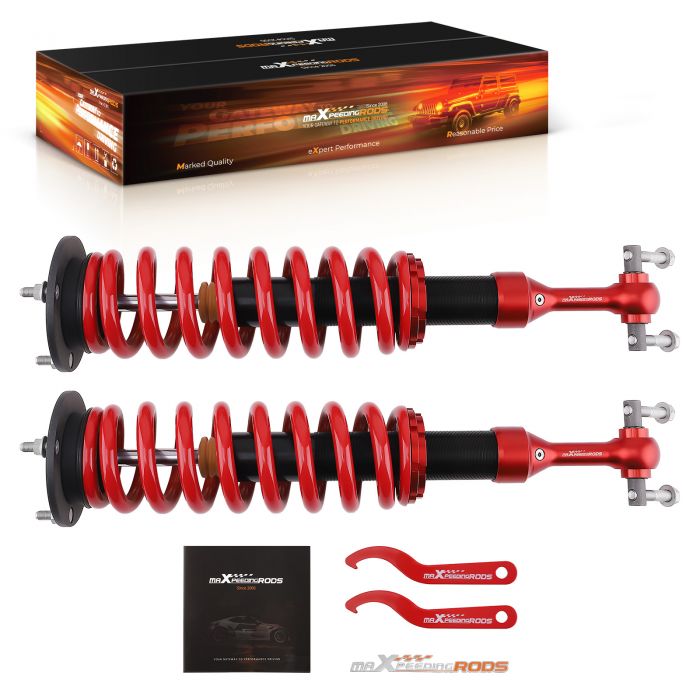

2x front height adjustable lift struts

Feature

Monotube struts Improve Heat Dissipation, Enhance Responsiveness and Control, reduce Foam and Cavitation
One product realizes different height options: 0-2" height adjustment by changing the lower spring collar location.
Help to level your front end with the rear end.
Increased Ground Clearance – help your vehicle handle bumps and other obstacles on the road better.
Aluminum materail usage to reduct the weight.
Chromium-silicon cold-wound structure with high tensile strength and resilience
