2Leveling Kit w/Lift Shocks compatible for Chevy/GMC 2500/3500HD 2020-24 w/ Torsion Key

SKU

3002923046

Skip to the beginning of the images gallery

Application

for 2020 - 2025 compatible for Chevy Silverado 2500 HD/3500 HD 4WD
for 2020 - 2025 compatible for GMC Sierra 2500 HD/3500 HD 4WD
note: Does NOT fit models with Magnetic Ride Control

Specification

Type: leveling kit
Height: Front 1.5-2"
Material: High Tensile Strength Carbon Steel
Finish: Powder coated
Diameter of piston rod: 18mm/0.71"
Piston diameter: 35mm/1.38"
Outer cylinder diameter: 54mm/2.13"
Travel range: 145mm/5.71"
Extended length: 495mm/19.49"
Collapsed length: 350mm/13.78"
Nitrogen charged: yes
Dust cover equipped: yes

Package included

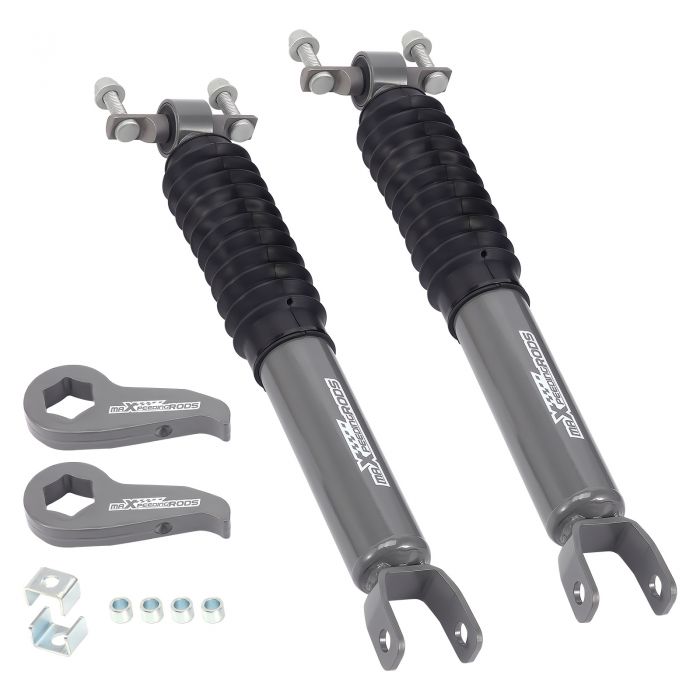

Package included:
2 x Front Shocks
Forged torsion bar adjuster keys
Shock extension sleeves
Package dimensions: 63*31.2*12.1 cm
Weight: 12.8kg

Feature

High-pressure nitrogen charged twin-tube shock absorber with high durability.
18mm Chromed Hardened Piston Rod.
35mm Diameter Sintered Iron Piston.
36KN Tensile Strength.
Precision Welding.
Improve your off-road ride.
Easy bolt-on installation.
Power coated surface：provides superior corrosion resistance.
High Tensile Strength Carbon Steel for optimal durability and fitment.
Dust cover included prevent the shaft rod and oil seal from damaging.
54mm body diameter for better heat dissipation.
