2.5 inch Lift Kit compatible for Jeep Wrangler TJ 4WD 6-Cyl 1997-06 ShocksCoil Springs

SKU

300200014097

Skip to the beginning of the images gallery

Application

for 1997-2006 4WD compatible for Jeep Wrangler TJ 4WD
for 2004-2006 4WD compatible for Jeep Wrangler TJ Unlimited 4WD
for 2003 - 2006 compatible for Jeep Wrangler Rubicon 4WD
for 2005 - 2006 compatible for Jeep Wrangler Unlimited Rubicon 4WD
Note： for 6CYL engine only
Recommended tire size: 31x10.50R15
Wheel BS: Factory
The use of stock wheels with larger than stock tires may cause the tire to come in contact with the lower control arm at full turn.
Aftermarket wheels are recommended.

Specification

Type: lift level kit
Lift Height:2.5" level the front with the rear
Finish: Powder coated
Bushing material: Rubber
Diameter of piston rod: F&R 18mm/0.70"
Piston diameter：F&R 35mm/1.37"
Outer cylinder diameter: F&R 54mm/2.12"
Travel: F: 220mm/8.66" R: 185mm/7.28"
extended length: F: 655mm/25.78" R: 550mm/21.65"
collapsed length:F:428mm/16.85" R: 365mm/14.37"
Nitrogen charged：yes
dust cover equipped: yes
spring length: F 535mm/21.06" R 390mm/15.35"
spring rate: F 2kg/mm (111.99lbs/inch) R2.5kg/mm(139.99lbs/inch)

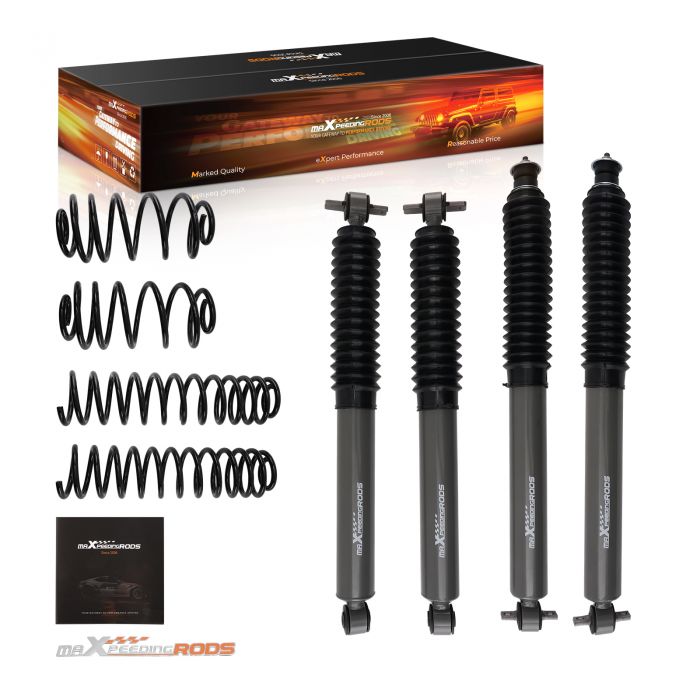

Package included

2x front coils
2x front shocks
2x rear coils
2x rear shocks

Feature

Levels the front with the rear of the vehicle
High-pressure nitrogen charged twin-tube shock absorber with high durability.
Rubber bushings for better absorption.
18mm Chromed Hardened Piston Rod.
35mm Diameter Sintered Iron Piston.
54mm body diameter for better heat dissipation
36KN Tensile Strength.
Dust cover included prevent the shaft rod and oil seal from damaging.
Precision Welding.
Improve your off-road ride.
