2.5 Lift Kit w/ StrutsShocks compatible for Toyota Tacoma RWD 4WD 1995-04

SKU

3002919711

Skip to the beginning of the images gallery

Application

for 1997 - 2004 compatible for Toyota Tacoma RWD
for 1995 - 2004 compatible for Toyota Tacoma 4WD
Note:
Does NOT fit models with 5 lug wheels.
Does NOT work with Bilstein coils.
Minor exhaust modification will be required. See install instructions for details.
32x11.50 tires will fit with wheels with a greater offset than factory and/or wheel spacers.

Specification

Type： lift kit
Lift Height: front 2.5" rear 1.5"
Material: High Tensile Strength Carbon Steel
Finish: Powder coated
Diameter of piston rod: F 20mm/0.78"; R 18mm/0.70"
Piston diameter：F& R 32mm/1.26"
Outer cylinder diameter: F&R 50mm/1.96"
Nitrogen charged：yes
Bushing material: Rubber
dust cover equipped: yes
Travel range: F 130mm/5.11"; R 210mm/8.26"
extended length: F 542mm/21.33";R 589mm/23.18"
collapsed length: F 412mm/16.22" ; R 379mm/14.92"
front spring rate: 8kg/mm (447.97lbs/inch)

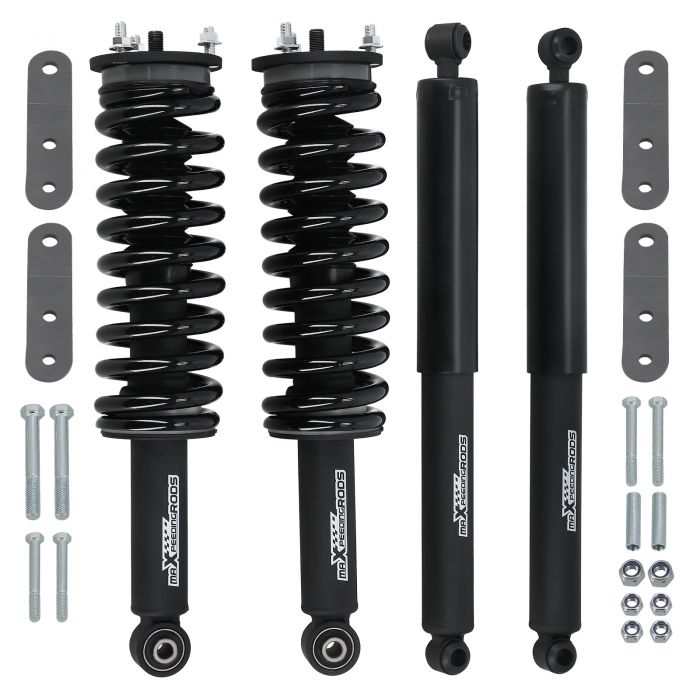

package included:
2x Front Struts
2x Rear shocks
2x rear lift shackles and hardware
package dimension: 64*50*20 cm
weight: 31.65 kg

Feature

High-pressure nitrogen charged twin-tube shock absorber with high durability.
Rubber bushings for better absorption.
ower coated surface：provides superior corrosion resistance.
35KN Tensile Strength.
Precision MIG Welding.
Improve your on and off-road ride.
