2AZ-FE 2.4L Engine Rebuild Overhaul Kit Crankshaft Rods Timing compatible for Toyota Scion
Application
Engine: 2AZ-FE 16V DOHC 2.4 LTR VVT-i PETROL.
Compatible for Toyota Highlander 2001-2007
compatible for Toyota Camry 2002-2009
compatible for Toyota RAV4 2004-2007
compatible for Toyota Corolla XRS 2009-2010
compatible for Toyota Matrix S 2009-2011
compatible for Scion tC 2005-2010
compatible for Scion xB 2008-2015
OE/Part number
Crankshaft Part Number:
13401-28900
13401-28010
New Type Part Number:
13011-0H031,13211-0H041-A0,13211-0H041-B0,13211-0H041-C0,
13251-0H030-B0,13251-0H030-C0,13211-28112-A0
Old Type Part Number:
13210-28030-A0,13210-28031-A0
Connecting Rod Part Number:
13201-29685-A0, 13201-29685-B0, 13201-29685-C0
13201-29125-A0, 13201-29125-B0, 13201-29125-C0
Main & Rod Bearing Set Part Number:
13281-28010，132810-H010，132810-H030，13281-28011
MB5646SI, 5M8412A, MB922, 7431M, BC1002, BM15-104, MBTO44
CR4514SI, 4B8411A, RB922, BB1001, 4-5000A, RBTO44, BR15-104
Gasket Seals & Head Bolts Set Part Number:
11115-28010, 11115-28011, 11115-28012, 11115-28013, 11213-0H040
11213-28021, 90080-31072, 90311-38078, 90311-38080, 90311-T0024
17173-0H020, 17173-0H040, HS26232PT, ES71183
90311-38089, 90311-38096, 90311-A0014
Intake & Exhaust Valve Kit Part Number
1371128010,1371528040，13711-0H010,13715-0H030
Timing Chain Kit Part Number:
13523-0D010, 13521-0H010, 13506-0H011, 13540-0H010, 13559-OH010
13050-28021, 13561-0H010, 13507-28010, 13549-28012, 13566-28010
Specification
Condition: New
Pistons w/ Rings Specifics：
Standard Bore Diameter: 88.50mm
1st Group: 1.00mm
2nd Group: 1.00mm
Oil Ring: 2.00mm

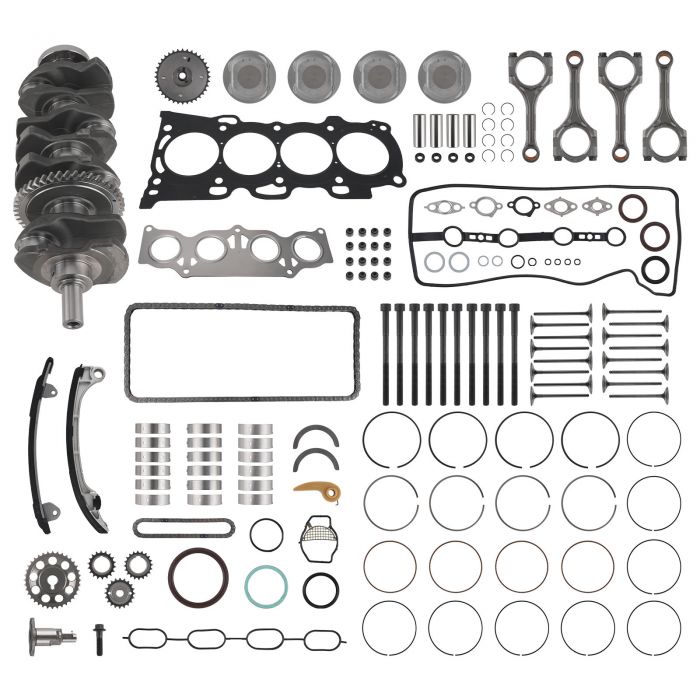

Package included
1x Crankshaft
4x Connecting Rods
1x Engine Pistons & Rings Set
1x Main & Rod Bearings Set
1x Intake & Exhaust Valve Kit
1x Timing Chain Kit w/ VVT Gear Set
1x Head Gasket Seals & Head Bolts Set：
Multi-layered Steel (MLS) Head Gasket
Valve Cover Gasket
Valve Stem Seals
Intake Manifold Gasket
Exhaust Manifold Gasket
Front Camshaft Seal
O-rings
Other Small Gaskets
Cylinder Head Bolt
Timing Chain Kit：
1x TIMING CHAIN (134 LINKS)
1x OIL PUMP CHAIN (52 LINKS)
1x CAM SPROCKET (LEFT VVT-i SPROCKET)
1x CRANK SPROCKET (18 TEETH)
1x TENSIONER (CAM CHAIN TENSIONER)
1x TENSIONER (OIL PUMP TENSIONER)
1x GUIDE RAIL (TENSIONER RAIL)
1x GUIDE RAIL (FIXED RAIL)
1x GUIDE RAIL (OIL PUMP FIXED RAIL)
1x OIL PUMP SPROCKET (20 TEETH)
Feature
1. Built to strict quality control standards
2. High quality Metal and constructed for Antirust and Anticorrosion
3. High quality and durable for stable performance and long time use.
Note
1. Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.
2. No Instruction Included, professional installation is highly recommended.
