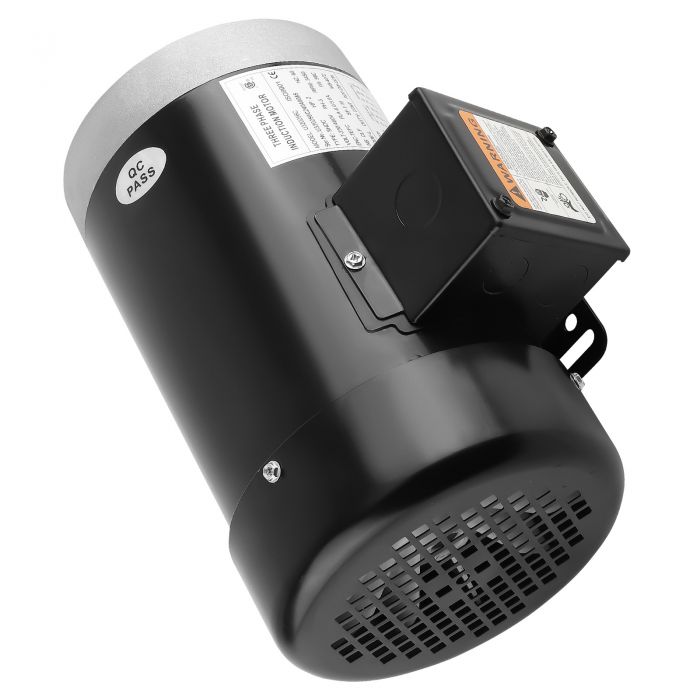

2HP Electric Motor 3450 RPM Compressor Duty 56CFrame 3 Phase 5/8 Shaft 230/460V

Application

General purpose motor is suitable for general equipment. Please purchase motor according to the specific needs of the parameters.

Specification

HP:2,
RPM:3600,
AMPS:5.6/2.8,
VOLTS:230/460,
FRAME:56C,
Shaft Diameter:5/8“,
Shaft Length:1.88”,
ENC:TEFC,
HZ:60,
IP:55,
INS:F,
ROT:CW/CCW,
compatible for AC Phase:Three Phase,

Note

Suggest using in clean and dry environments. Made of high-quality steel material, it can protect the engine, longer service life.
