2in Front Leveling Struts compatible for Ford F-150 4WD 2014-2024 2023

SKU

3002919562

Skip to the beginning of the images gallery

Application

Compatible for Ford F150 2014-2024 4WD only
2" front leveling
Note: Allows 33x12.50 on factory 20x9 wheels
Cannot be installed in conjunction with strut spacers
Does not fit 2WD, compatible for Raptor models or models equipped with CCD system or Blue Cruise

Specification

product type: leveling kit
height: lift front 2"
Material: High Tensile Strength Steel
Finish: Powder coated
Bushing material: Rubber
Diameter of piston rod: 20mm/0.78"
Piston diameter： 32mm/1.25"
Outer cylinder diameter: F&R 50mm/1.95"
Travel range: 138mm/5.43"
extended length: 632mm/24.88"
collapsed length: 494mm/19.44"
Nitrogen charged：yes
Spring length: 420mm/ 16.53"
spring rate: 9.5 kg/mm /531.97lb/in

Package included

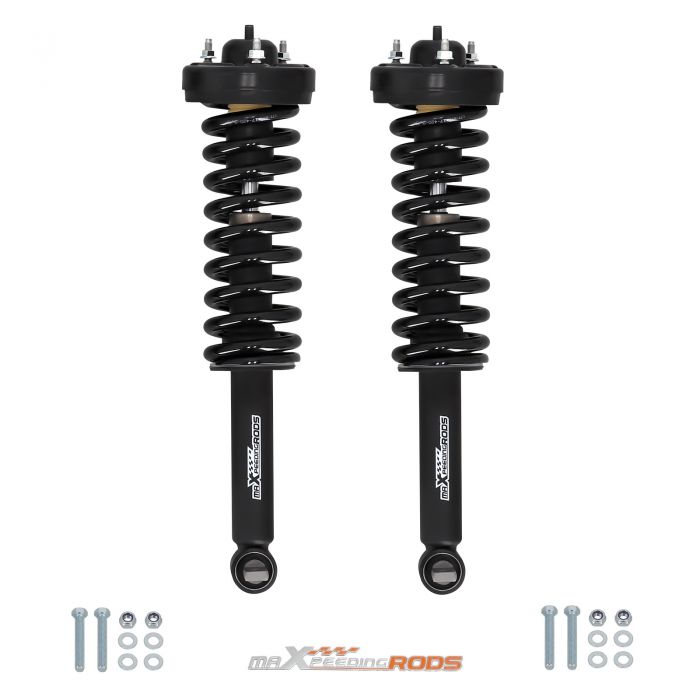

2x front strut
package dimensions: 73*28*23cm
weight: 25.8kg

Feature

High-pressure nitrogen charged twin-tube shock absorber with high durability.
Rubber bushings for better absorption
35KN Tensile Strength.
Power coated surface：provides superior corrosion resistance.
Increase ground clearance to level the front with the rear of the vehicle
