2x CV Axle Shaft compatible for Honda Rancher 420 TRX420FM1 4x4 2014-2019 Front Left Right
Application:
Compatible for Honda Rancher 420 TRX420FE1 4x4 ES 2018
Compatible for Honda Rancher 420 TRX420FM1 4x4 2018
Compatible for Honda Rancher 420 TRX420FA2 4x4 Auto DCT EPS 2017
Compatible for Honda Rancher 420 TRX420FA2 4x4 Auto DCT EPS Camo 2017
Compatible for Honda Rancher 420 TRX420FE1 4x4 ES 2017
Compatible for Honda Rancher 420 TRX420FE1 4x4 ES Camo 2017
Compatible for Honda Rancher 420 TRX420FM1 4x4 2017
Compatible for Honda Rancher 420 TRX420FM1 4x4 Camo 2017
Compatible for Honda Rancher 420 TRX420FA1 4x4 Auto DCT 2016
Compatible for Honda Rancher 420 TRX420FA2 4x4 Auto DCT EPS 2016
Compatible for Honda Rancher 420 TRX420FE1 4x4 ES 2016
Compatible for Honda Rancher 420 TRX420FM1 4x4 2016
Compatible for Honda Rancher 420 TRX420FM2 4x4 EPS 2016
Compatible for Honda Rancher 420 TRX420FA1 4x4 Auto DCT 2015
Compatible for Honda Rancher 420 TRX420FA2 4x4 Auto DCT EPS 2015
Compatible for Honda Rancher 420 TRX420FE 4x4 ES 2015
Compatible for Honda Rancher 420 TRX420FM1 4x4 2015
Compatible for Honda Rancher 420 TRX420FM2 4x4 EPS 2015
Compatible for Honda Rancher 420 TRX420FA1 4x4 Auto DCT 2014
Compatible for Honda Rancher 420 TRX420FA2 4x4 Auto DCT EPS 2014
Compatible for Honda Rancher 420 TRX420FE1 4x4 ES 2014
Compatible for Honda Rancher 420 TRX420FM1 4x4 2014
Compatible for Honda Rancher 420 TRX420FM2 4x4 EPS 2014
Part Number:
44220-HR3-A21, 44350-HR4-A22, 44350-HR3-A21, 44350-HR3-A22
44250-HR3-A21, 44250-HR3-A22, 44220HR3A21, 44350HR4A22
44350HR3A21, 44350HR3A22, 44250HR3A21, 44250HR3A22
| Product Details | |
| Type | CV Axle Assembly |
| Compatible Type | ATV; UTV |
| Color | Black |
| Placement on Vehicle | Front |
| Axle Nut Hex Size | 1.06 in / 27 mm |
| Axle Nut Locking Type | Split Pin |
| Axle Nut Thread Size | M18 x 1.5 |
| Shaft Material | 40CR |
| Surface Finish | Black Coating |
| Inboard / Outboard Splines | 20 / 26 Teeth |
| Overall Compressed Length | 26.93 in / 684 mm |
| Shaft Diameter | 7/8 (0.906 Inches) |
| Inner Diameter | 2 11/16 (2.717 Inches) |
| Outboard Spline Diameter | 2 3/4 (2.72 Inches) |
| Output Shaft Connection Style | Spline |
| Surface Finish | Black Coating |
Package Includes:

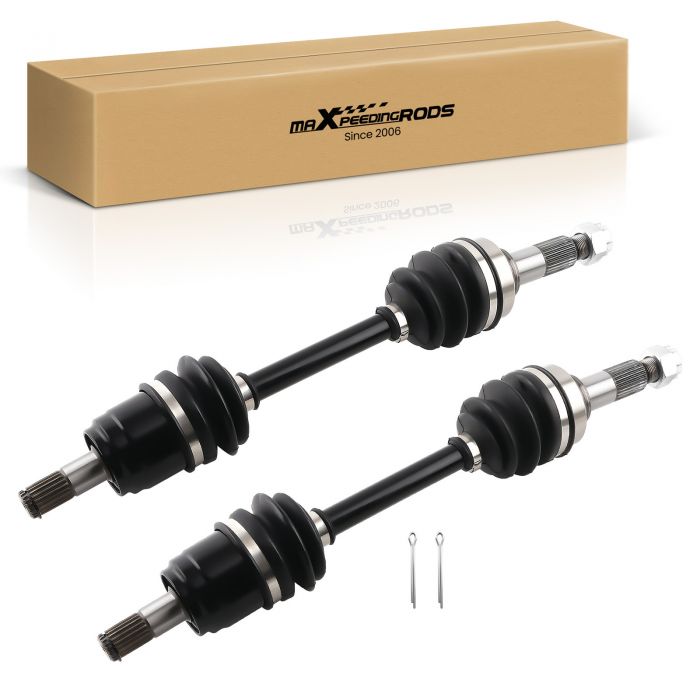

2* Front Left&Right CV Axle Shafts
(Showing as the picture)
Notice:
* Professional installation is highly recommended (No Instruction Included)
* For any needs please contact us
