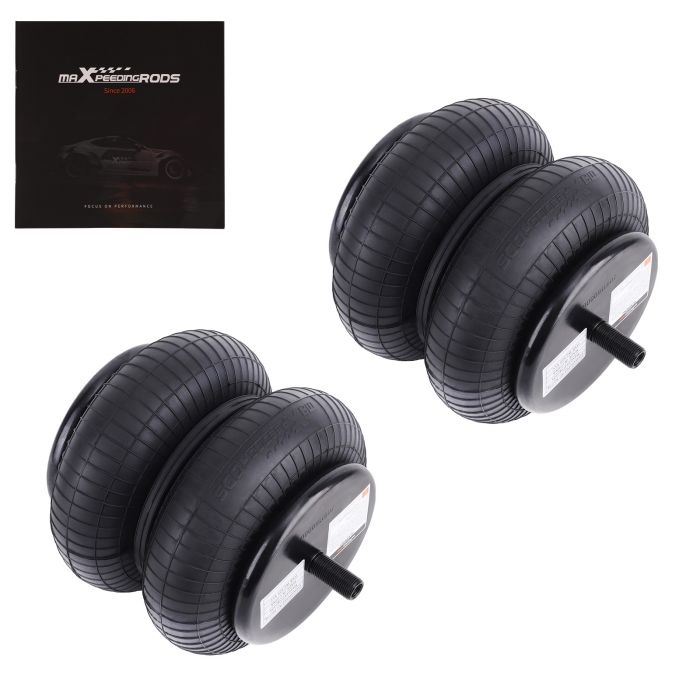

2pcs Air Spring Bellow Bags for Goodyear 2B9229 for Firestone W01-358-6897

OE/Part number

replacement for Firestone W01-358-6897
replacement for ContiTech FD 200 19 505, 64517, FD200-19505
replacement for Goodyear 2B9229, 2B9-229
compatible for Volvo 3098608

Other parts number:
fit for Triangle 4505, 6325
for Watson & Chalin AS-0058, W01W206897
for Brake & Wheel: M3528
for Neway G2296897500
for Ridewell 1003586897C
for IHC 2601750C1, 2B9-490

Specification

Top plate screw (nut) teeth: 3/8-16UNF
Screw (nut) teeth of the bottom cover plate: 1/2-13UNC
Air hole/air inlet: 1/4 NPT
Top plate diameter: 160mm / 6.3inch
Diameter of the bottom cover: 160mm / 6.3inch
Dsign height: 217mm / 8.5inch
Intern Jounce Bumper: Not Included
Quantity: 1 Piece
Condition: Brand New
Material: Natural rubber
Package Length, width and height: 38*37*36cm/15*14.6*14.2 inch
Package Wight: 4.95 Kg/11 LBS

Feature

1、Highest leak test ratio: 100% Air Tightness Testing.
2、Tested over 4,000,000 times, most air springs are only tested 1,000,000 times.
3、Temperature Range ≥-40°F/≤158°F: Premium Natural Rubber Material.
4、The thickness of the rubber is 4.5-5.00mm.
5、12.9 grade high strength steel studs.
6、Withstand 2Mpa of air pressure before the rubber burst.
7、Careful evaluation of OEM specifications.
8、Strict quality control.
9、Sturdy & Durable Material.
10、Reduces Damage of Trailer, Cab And Truck Body.
11、Reduce driver discomfort and dangerous fatigue, improve driver safety.
12、Allow perfect load equalization between axles. Provide constant-level hauling.
13、Increase life of tires and brake linings.
14、Substantially reduce breakage and maintenance of other vehicle components.
