3 Drop Lowering Springs 4 Shackles Hangers Shocks Kit compatible for Ford F100 F150 73-79

Introduction

The front dropped coils and shocks will drop a 3" in the front. The rear shackles and hangers will drop your truck 3" or 4" in the rear. Necessary hardware are included for bolt-on installation. This is a cost-effective way to lower the front and rear body height of your truck. No need to buy expensive drop leafs or convert to drop spindles.

Application

Compatible for Ford F100 F-100 1973-1979 2WD
compatible for Ford F150 compatible for F-150 1975-1979 2WD
Drop Front 3"; Rear 3" or 4"

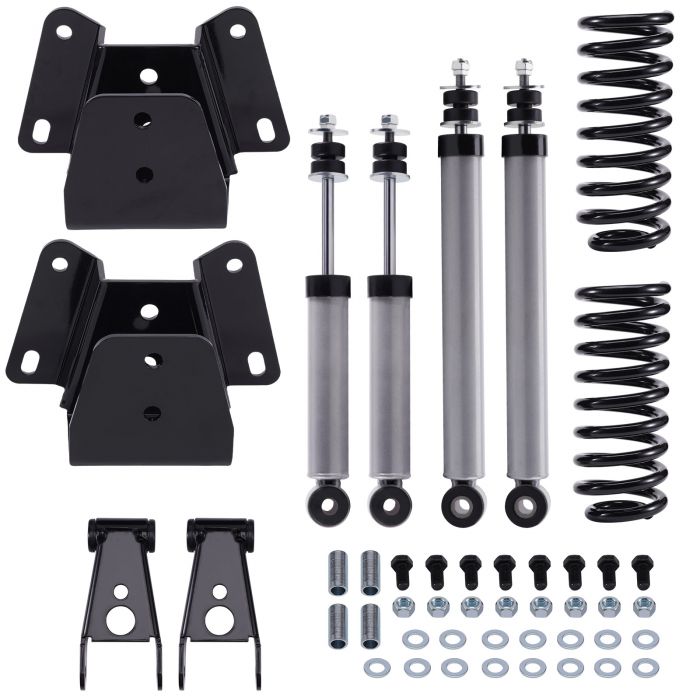

Package included

2x 3" front drop springs
with spring length 350mm(13.77")
spring rate: 7.5 kg/mm (419.98 lbs/in)
2x front shocks
Diameter of piston rod:18mm/0.70"
Piston diameter: 32mm/1.25"
Outer cylinder diameter: 50mm/1.95"
Extended length: 385mm/15.15"
Collapsed length: 285mm /11.22"
Travel length: 100mm (3.93")
2x spring leaf hangers (front of rear)
2x spring leaf shackles (rear of rear)
2x rear shocks
Diameter of piston rod: 18mm/0.70"
Piston diameter: 32mm/1.25"
Outer cylinder diameter: 50mm/1.95"
Extended length: 635mm/25"
Collapsed length: 425mm/16.73"
Travel length: 210mm/8.26"
package dimensions:54*36.5*37 cm
weight: 34.32 kg

Feature

spring feature
Chromium-silicon cold-wound structure with high tensile strength and resilience
Black powder coating for corrosion resistance

shock feature
Filled with nitrogen for better ride and handling
Designed to improve performance and react quickly to changing road conditions
Use high quality oil to ensure that the shock absorbers work well in different weather conditions

shackles and hangers feature
Made of 6 mm thick plates and nice welding to ensure high strength

One year for any manufacturing defects
