3 Front 4 Rear Drop Kit compatible for Ford F100 F-100 F150 2 Wheel Drive 1973-1979

SKU

300200020642

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Application

Compatible for Ford F100 F-100 2 Wheel Drives 1973-1979
compatible for Ford F150 F-150 2 Wheel Drives 1975-1979

Specification

product type: lowering kit with shocks
drop height: front 3" rear 4"
material: steel
Finish: Powder coated
Bushing material: Rubber
Diameter of piston rod: F&R 12.5mm/0.49"
Piston diameter：F&R 30mm/1.18"
Outer cylinder diameter: F&R 45mm/1.77"
Travel: F: 118mm / 4.64" R: 201mm/7.91"
extended length: F: 425mm/16.73"
R: 535mm/21.06"
collapsed length:F: 307mm/12.08"
R: 368mm/14.48"
Nitrogen charged：yes
dust cover equipped: yes
spring length: 350mm/13.77"
spring rate: 7.5kg/mm=419.98lbs/in

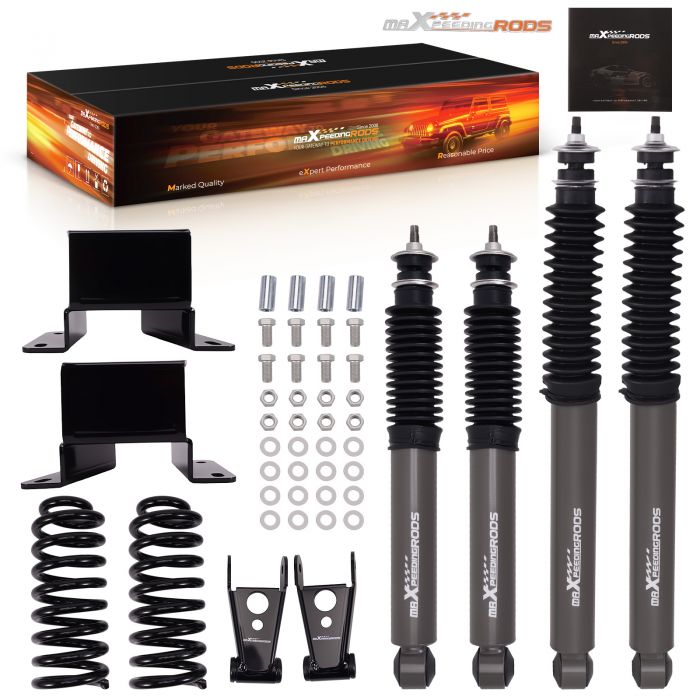

Package included

2x front drop shock
2x front drop coils
2x rear drop shocks
2x rear hangers
2x rear shackles
necessary hardware

Feature

Lower the center of gravity, reduce cornering roll, and increase vehicle stability
Give your vehicle an aggressive standce
High-pressure nitrogen charged twin-tube shock absorber with high durability.
Dust cover included prevent the shaft rod and oil seal from damaging.
