3 Full Body Lift Kit 2-5 Shackle compatible for Chevy Astro compatible for GMC Safari AWD 1996-2005

SKU

3002920305

Skip to the beginning of the images gallery

Application

For 1996-2005 compatible for Chevy Astro AWD;
For 1996-2005 compatible for GMC Safari AWD
Note: This kit can be used on the RWD vans if you only want 2" of lift in the front and 2" or more in the rear.

Specification

Type: Body lift kit with rear shackles and hangers
Lift size: Front 2", Rear 2"-5"
Finish:Powder coated surface & Surface galvanized for hardware
Bushing material:Polyurethane
Spacer material: PA66+GF30
Fits tire size up to 235/75R15, 235/70R16 or 29"
30" & 31" tires require triming the front wheel opening

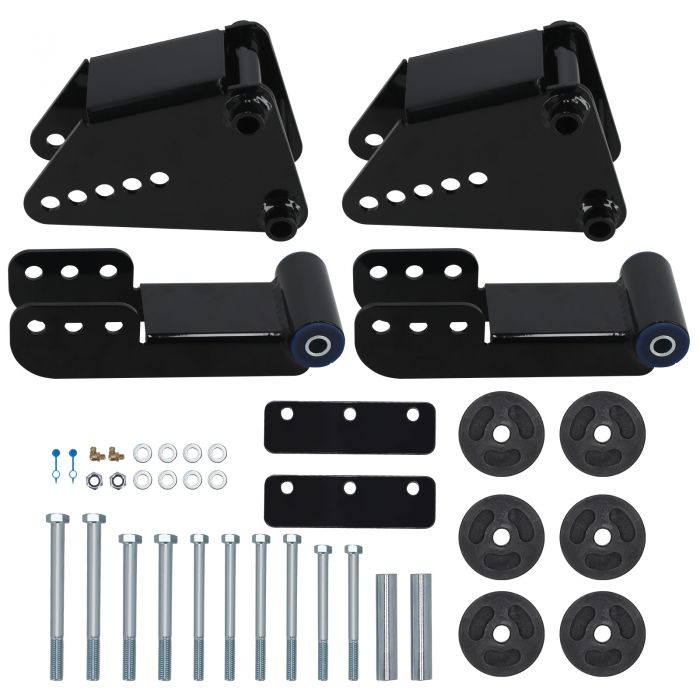

Package included

6x 2" front Sub-Frame spacers （spacer thickness 2"）
2x adjustable shackles
2x adjustable spring hangers
2x14mm bolts to eliminate the need to remove fuel tank.
Bumper Relocation Brackets
Rear Brake Line Drop Bracket
other necessary hardware
package dimensions: 53*41*25
weight: 14.55 kg

Feature

Superior corrosion resistance；
More durable bushing.
Maintain towing or cargo capacity and factory ride quality.
It can be used to convert 90 to 95 AWD to steel leaf springs, with a 96 to 05 steering shaft.
allow to install bigger tires.
