3 Inch Front 2 Inch Rear Lift Shock Kit compatible for Toyota Tacoma 05-23 2WD 4WD

Application

for 2005-2023 4WD compatible for Toyota Tacoma
for 2005-2023 2WD compatible for Toyota Tacoma
note
Requires minor cutting.
Does NOT fit models with 5 lug wheels.
Does NOT fit T/X Baja models.
Does NOT fit XSP-X models.

Specification

type：spacer leveling lift with shocks
lift height: front 3" rear 2"
Material: High Tensile Strength Carbon Steel
Finish: Powder coated
Diameter of piston rod: 18mm/0.70"
Piston diameter： 35mm/1.37"
Outer cylinder diameter: 54mm/2.12"
Nitrogen charged：yes
Bushing material: Rubber
dust cover equipped: yes
Travel: 255mm/10.03"
extended length:725mm/28.54"
collapsed length:470mm/18.50"

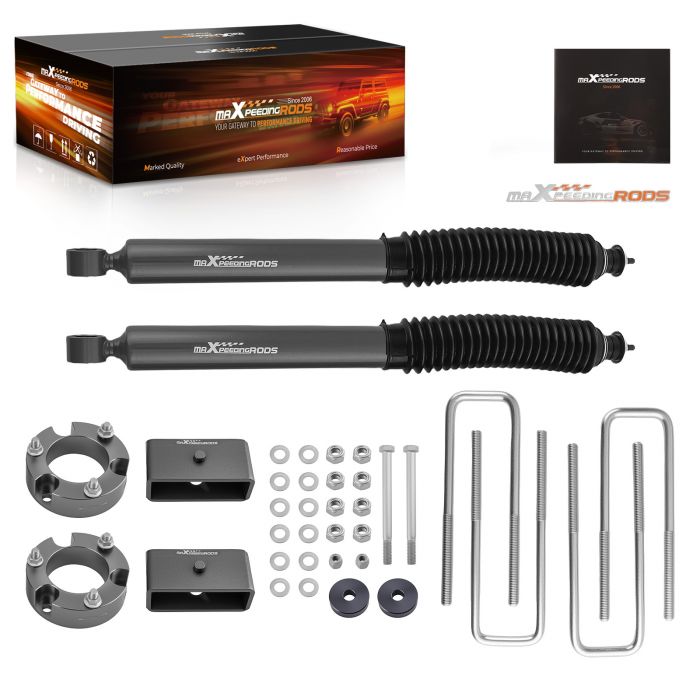

Package included

2x Strut extensions thickness 38mm/1.5"
2x Differential spacers thickness 13mm/0.51"
note thickness not same with real lift height
2x 2" rear lift blocks
2x rear shocks
U-bolts
Hardware

Feature

Easy installation
Increased ground clearance
Maintains factory ride quality
Levels the front with the rear of the vehicle
