3.25 Lift Kit compatible for Jeep Wrangler JK 4-Door 2007-18 Coil Springs Shocks Bracket

SKU
3002922976

Register and log in to view the price.

Introduction:

  • The suspension lift kit is designed to increase the ground clearance of the suspension, allowing the installation of larger tires and enhancing the off-road quality of the car.
  • High-pressure nitrogen-filled shocks that provide a wonderful blend of off-road action and smooth on-road ride quality.
  • Featuring natural rubber bushings and corrosion resistant metallic paint.

Fitment:

  • Compatible for Jeep Wrangler JK 4-Door  2WD/4WD 2007-2018

Feature:

  • High-pressure nitrogen charged twin-tube shock absorber with high durability.
  • Rubber bushings for better absorption.
  • 18mm Chromed Hardened Piston Rod.
  • 32mm Diameter Sintered Iron Piston.
  • 50mm Shock Body help Heat dissipation.
  • Precision Welding.
  • Improve your on and off-road ride.
  • Powder coated surface:provides superior corrosion resistance.
  • High Tensile Strength Carbon Steel for optimal durability and fitment.
  • Chromium-silicon cold-wound structure with high tensile strength and resilience
  • Increased Ground Clearance –  help your vehicle handle bumps and other obstacles on the road better.

Specification:

  • Type: suspension lift kit
  • Height: 3.25”
  • Finish: Powder coated
  • Bushing material: Rubber
  • Tire Info:
  • 35x12.50R17 17x9 5x5.0 12
  • 35x12.50R17 17x9 5x5.0 6
  • 35x12.50R18 18x9 5x5.0 12
  • 35x12.50R18 18x9 5x5.0 6
  • 35x12.50R20 20x9 5x5.0 12
  • 35x12.50R20 20x9 5x5.0 6
  • Diameter of piston rod:Front & Rear 18mm/0.71inch
  • Piston diameter: Front & Rear 32mm/1.26inch
  • Outer cylinder diameter: Front & Rear 50mm/1.97inch
  • Travel Length: Front & Rear 250mm/9.84inch
  • Extended Length: Front 700mm/27.56inch; Rear 680mm/26.77inch
  • Collapsed Length: Front 450mm/17.72inch; Rear 430mm/16.93inch
  • Nitrogen charged:Yes
  • Spring length: Front 500mm/19.69inch; Rear 400mm/15.75inch
  • Spring rate:Front 3kg/mm=168lb/in; Rear 4 kg/mm=224lb/in
  • Spring spacer thickness: Front & Rear 19.05mm/0.75inch
  • Spring spacer material: Nylon
  • Spring material: 55CrSi

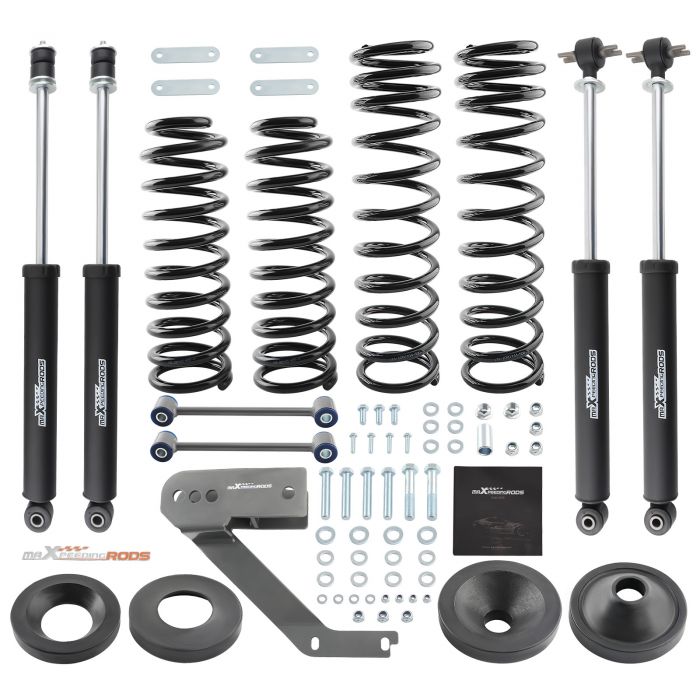

Package Includes:

  • 2x Front spring spacer (Nylon)
  • 2x Rear spring spacer (Nylon)
  • 2x Front shock (High Tensile Strength Carbon Steel)
  • 2x Rear shock (High Tensile Strength Carbon Steel)
  • 2x Front spring
  • 2x Rear spring
  • 1x compatible for Panhard rod bracket (Steel)
  • 2x Sway bar link (Steel)
  • Hardware (Steel)
  • Package dimension: 70cm x 50cm x 35cm/27.56in x 19.69in x 13.78in
  • Weight: 44.11Kg/97.25Lb
