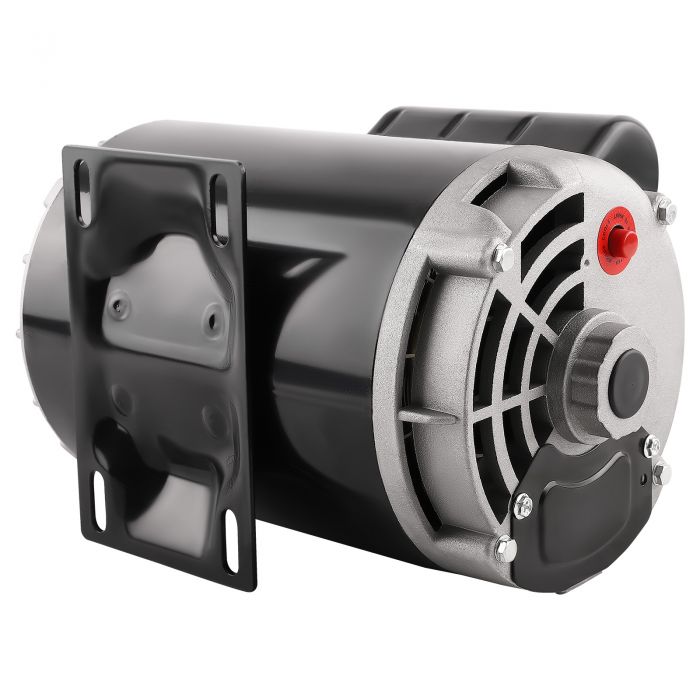

3.7 HP Electric Motor 3450 RPM Compressor Duty 56 Frame 1 Phase 5/8 Shaft 230V

Application

General purpose motor is suitable for general equipment. Please purchase motor according to the specific needs of the parameters.

Specification

Open Drip Proof (ODP)
Single Phase
3.7 HP
3450 RPM
60hz
230 Volts
AMB 40 °C
Frame: 56
Duty: Cont. Compressor
Service Factor: 1.0
Full Load Amps: 17.2
Insulation Class: F
Non-Reversible, CCW Rotation Facing Shaft
Thermally Protected
Shaft Diameter: 5/8"
Shaft Length: 1.88"
Standard Size Keyway: 3/16"
Features Manual Reset Overload Protection

Note

Suggest using in clean and dry environments. Made of high-quality steel material, it can protect the engine, longer service life.
