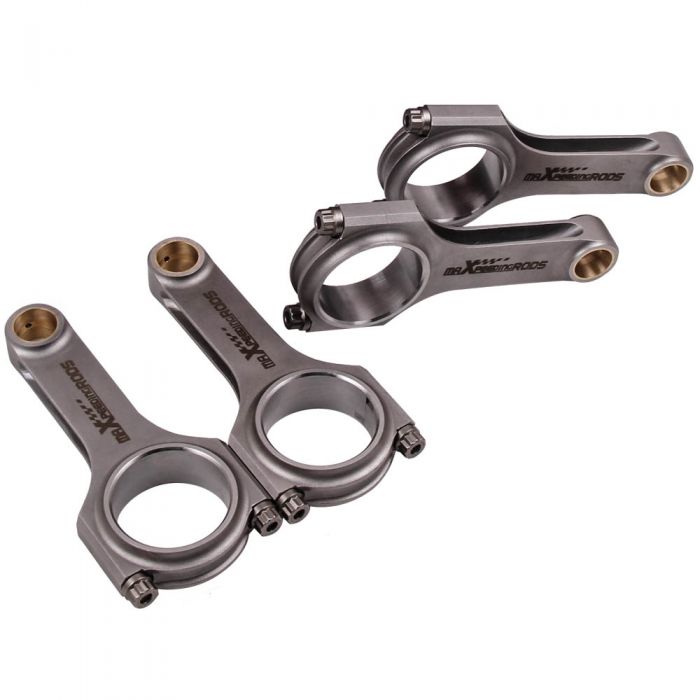

4340 Forged Connecting Rods+ARP2000 Bolts compatible for Honda D17 D17A 1.7L Engine 137mm

Application

Compatible for Honda D17 / D17A 1.7L SOHC：
Compatible for Honda Civic Coupe ES 2001-2005 Coupe (1.7L - Floating Pin Piston)
Compatible for Honda Civic EX EM2/ES1 2001-2006 Coupe/Saloon (1.7L VTEC - Floating Pin Piston)
Compatible for Honda Civic LX EM2/ES1 2001-2006 Coupe/Saloon (1.7L - Floating Pin Piston)
Compatible for Honda Civic Si EP2 2001-2005 Hatchback (1.7L VTEC - Floating Pin Piston)
Compatible for Honda Civic HX EM2 2001-2005 Coupe (1.7L VTEC-E - Floating Pin Piston)
Compatible for Honda Civic GX EN2 2001-2005 Saloon (1.7L CNG - Floating Pin Piston)
Compatible for Honda Civic DX ES1 2001-2005 Saloon (1.7L - Floating Pin Piston)
Compatible for Honda Civic VP ES1 2001-2005 Saloon (1.7L Value Package - Floating Pin Piston)
Compatible for Acura 1.7 EL 2001-2005 Saloon (1.7L - Floating Pin Piston)
Compatible for Honda Stream RN1 2000-2007 MPV (1.7L - Floating Pin Piston)
Compatible for Honda Stream RN1 2004 MPV (1.7L VTEC - Floating Pin Piston)
Compatible for Honda FR-V BE1 2004-2007 MPV (1.7L - Floating Pin Piston)

Specification

Beam Style: H-beam Street/Strip
Material: 4340 Chromoly Steel
Finish: Shot-peened
Wrist Pin Style: Floating
ClearancedFor Stroker: Yes
Cap Retention Style: Through-bolt
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 3/8"
Connecting Rod Bolt Material: Alloy Steel
Fastener Yield Strength (psi): 220,000 psi (ARP 2000)
Upgrade Fasteners: ARP L19 (260,000 psi) optional
Connecting Rod Bolt Head Style: 12-point
CNC Machined: High Precision
Rod Cap Alignment: Precision dowels
Bore Tolerance: ±0.005 mm
Balancing: ±1 gram per rod
Weight Matched Set: Yes
Remanufactured: No
Testing: Magnafluxed, X-rayed, Ultrasonically tested
Heat Treated: Yes

Package included

Quantity: Sold as a set of 4
Package Size: 28CM*20CM*10CM

Dimension

Connecting Rod Length Center to Center: 137.00mm / 5.394in
Approximate Connecting Rod Weight:449g
Big End Bore Diameter: 48.00mm / 1.890in
Pin End Bore Diameter: 19.00mm / 0.748in
Big End Width: 19.80mm / 0.780in
Small End Width: 21.59mm / 0.850in

Performance Ratings

Advertised Horsepower Rating: 200HP/piece
Advertised RPM Rating: 9,000rpm

Notice

All modifications must be installed by licensed mechanics and in compliance with your local modification regulations
