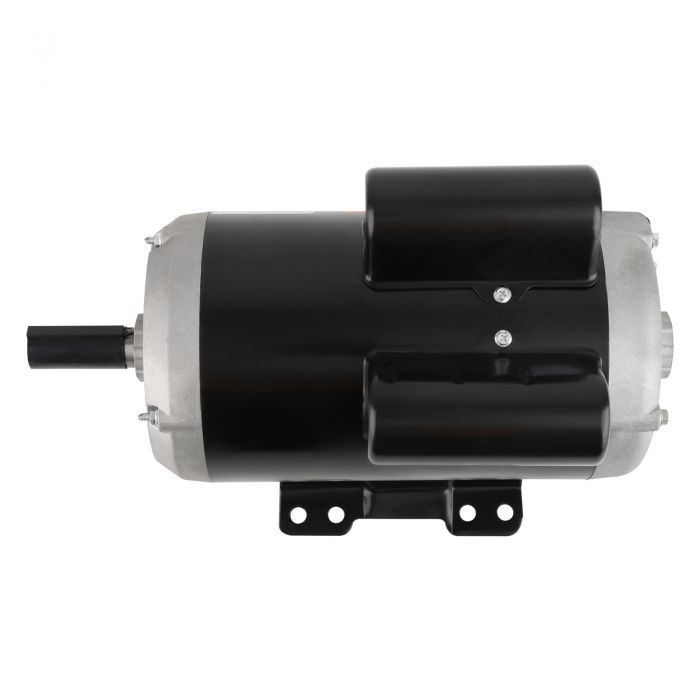

5HP Electric Motor Compressor 3450RPM 184TZ 7/8“ Shaft Keyed shaft 230V 54421193

SKU

300200001607

Skip to the beginning of the images gallery

Application

General purpose motor is suitable for general equipment. Please purchase motor according to the specific needs of the parameters.

OE/Part number

54421193,
P09988A,
CC1021885,
23378805,
23220064,
56283138

Specification

Horsepower: 5HP
Frame Size: 184TZ
Amperage：24.9A
Frequency: 60 HZ
Phase: One/ Single Phase
Voltage: 230V
Rated Speed: 3450 RPM
Rotation: CCW-SE only
Shaft Length: 2.25”
Shaft Diameter: 7/8” Keyed shaft
Insulation Class: F
Current Type: Compatible for AC
Overload Protection with Manual Reset

Note

Suggest using in clean and dry environments. Made of high-quality steel material, it can protect the engine, longer service life.
