Ignition Coil & Iridium Spark Plug 6-PC Kit compatible for Ford F-150 3.5L 3.7L 2011-2017
Application:
Compatible for Ford Edge V6 3.5L 2012-2016
Compatible for Ford Edge V6 3.7L 2011-2014
Compatible for Ford Explorer V6 3.5L 2011-2017
Compatible for Ford F-150 V6 3.5L 2015-2017
Compatible for Ford F-150 V6 3.7L 2011-2014
Compatible for Ford Flex V6 3.5L 2012-2017
Compatible for Ford Mustang V6 3.7L 2011-2016
Compatible for Ford Taurus V6 3.5L 2013-2016
Compatible for Ford Transit-150 V6 3.7L 2015-2018
Compatible for Ford Transit-250 V6 3.7L 2015-2018
Compatible for Ford Transit-350 V6 3.7L 2015-2018
Compatible for Lincoln MKS V6 3.7L 2013-2016
Compatible for Lincoln MKT V6 3.7L 2012-2016
Compatible for Lincoln MKX V6 3.7L 2011-2016
Compatible for Lincoln MKZ V6 3.7L 2013-2016
Compatible for Mazda 6 V6 3.7L 2009-2013
Compatible for Mazda CX-9 V6 3.5L 2007
Compatible for Mazda CX-9 V6 3.7L 2008-2015
OE/Part number:
Ignition Coil:
7T4Z12029DA, 7T4Z-12029DA
7T4Z12029E, 7T4Z-12029E
5C1652
DG520
GN10237
UF553, UF-553
UF595, UF-595
Spark Plug:
6509
LTR6IX11
Specification:
Terminal Quantity: 2
Terminal Gender: Male
Terminal Type: Blade
Voltage: 12V
Spark Plug Material: Iridium
Connector Shape: Square
| Center Electrode Core Material | Platinum |
| Center Electrode Tip Material | Iridium |
| Electrical Terminal Type | Non-Removable Nut |
| Gap Size | 0.035-0.043 IN; 0.8-1.1 MM |
| Ground Configuration | J-Gap |
| Thread Size | M14 - 1.25 |
| Hex Size | 5/8" (16mm) |
| Insulator Height | 2.07 IN; 52.5 MM |
| Manufacturer Heat Range | 6 |
| Part Number | LTR6IX-11 |
| Reach | 0.708 IN; 18 MM |
| Resistance (ohms) | 5000 |
| Compatible for Seat Type | Tapered |
| Installation Torque(N) | 15N |
Package included:

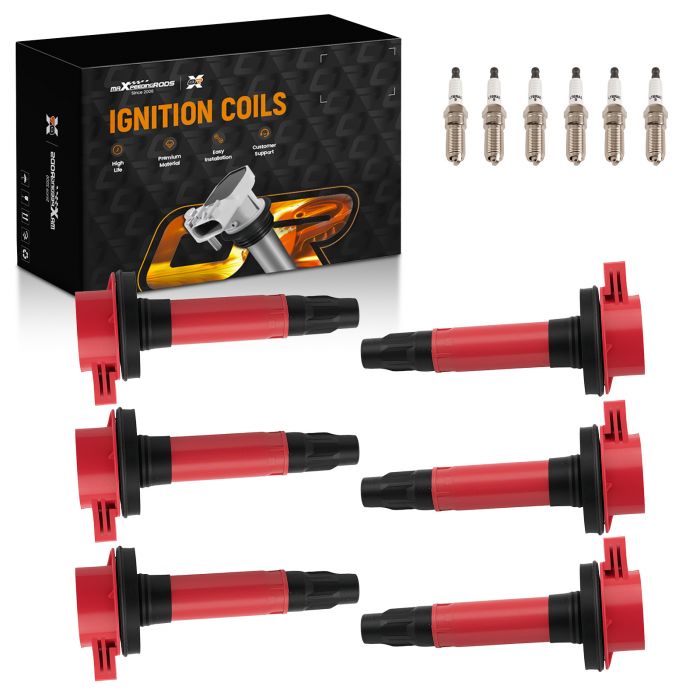

6x Ignition Coil + 6x Iridium Spark Plug
