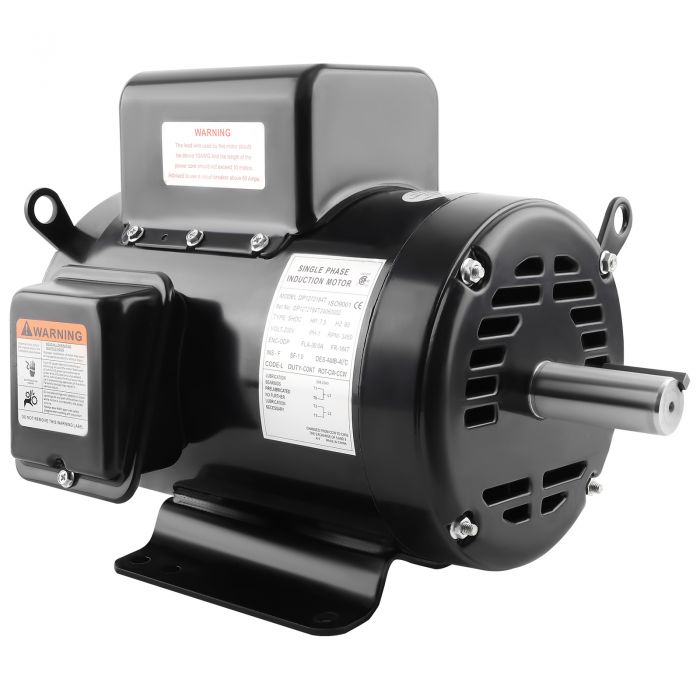

7.5HP Air Compressor Electric Motor 3450 RPM 184T Frame 1-1/8 Shaft Diameter

SKU

3002923036

Skip to the beginning of the images gallery

Application

General purpose motor is suitable for general equipment. Please purchase motor according to the specific needs of the parameters.

Specification

Rated Load (HP): 7.5 Horse Power
Current Type: Compatible for AC
Compatible for AC Phase: Single Phase
IEC Frame Size: 184T Frame
NEMA Frame Suffix: 184T
Enclosure Type: ODP (Open Drip-Proof)
Base RPM: 3450 RPM
Inverter/Vector Duty Rating: No
Nominal Rated Input Voltage: 208/ 230 Volts
Full Load Amps: 30A
Shaft Diameter: 1-1/8" Keyed Shaft
Shaft Length: 2.75"
Shaft Type: Keyed
Insulation Class: F
Reversible/Non-Reversible: Reversible
Rotation: CW/ CCW

Package included

1 x Compressor Electric Motor

Feature

1. Air Compressor Motor: 7.5 Horse Power, 184T Frame, Open Drip-Proof, INS - F, Rotation - CW/CCW, Shaft diameter - 1-1/8".
2. This Air Compressor Electric Motor is designed with an open drip-proof feature that ensures the motor's longevity by preventing water and dust from entering.
3. This electric motor features a reversible function for CW/CCW, offering versatility and convenience for various applications.
4. Constructed with high-quality materials, this durable electric motor promises long-lasting use and excellent resistance to wear and tear.

Note

Suggest using in clean and dry environments. Made of high-quality steel material, it can protect the engine, longer service life.
