Adjustable Drop Height Kit compatible for Dodge Ram 1500 2WD V8 1994-1999 2-4 Lowering

Application

Compatible for Dodge Ram 1500 2WD (Std Cab, V8, Auto Trans Only) 1994-1999

Specification

product type: lowering kit
lowering height: front 2" or 3"; rear 4"
material: steel & molded spacer
finish: powder-coated
Diameter of piston rod: F&R12.5mm/0.49"
Piston diameter：F&R 30mm/1.18"
Outer cylinder diameter: 45mm/1.77"
Travel: F 118mm/4.64" R 200mm/ 7.87"
extended length: F 425mm/16.73" R 566mm/ 22.28"
collapsed length: F 307mm/12.08" R 366mm/ 14.40"
Nitrogen charged：yes
dust cover equipped: yes

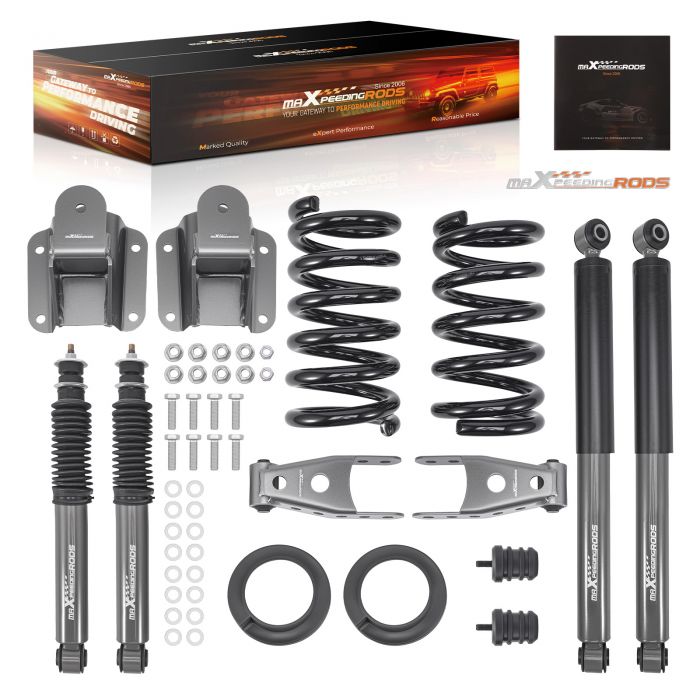

Package included

1x passenger side coil with spring length 263mm=10.35"
spring rate: 16kg/mm=895.95lbs/in
1x driver side coil with spring length 283mm=11.14"
spring rate: 15kg/mm=839.96lbs/in
2x spring spacer help to lift 1"
2x rear hangers
2x rear shackles
2x frong shocks
2x rear shocks
necessary hardware

Feature

2 lowering height options with one purchase
Lower the center of gravity, reduce cornering roll, and increase vehicle stability
High tensile spring——600,000 times continuously test to assure its high tensile strength.
Powder coating for corrosion resistance
nitrogen charged twin-tube shock absorber with high durability
