Air Ride Suspension Kit Rear Left/Right compatible for Harley Davidson Touring Models 94-23
Application
Compatible for Harley-davidson touring models 1994-2020
(NOT Fit Electra Glide Ultra Classic Limited Low
NOT Fit CVO Tri Glide)
Specification
Condition: Brand New
Placement on Vehicle: Rear left and right
Air shock---
Total length
Max. Extended: 15.7 inches (400 mm)
Min. Compressed: 15.7 inches (300 mm)
Stroke:100 mm
Eye to eye length:
Fully collapsed approx 10.6 inches (268 mm)
Fully extended 14.5 inches (368 mm)
Stroke: 13.9 inches (100 mm)
Fisheye: Ø13mm
Air line inside dia: 4 mm
Operating Pressure : ≤2.0Mpa
Temperature range：≤+70° , ≥-40°
Air pump---
Power: 168W
Output Voltage: DC-12V
Maximum current: 14A
Maximum Working Voltage: 130PSI(9.1KG/c㎡)

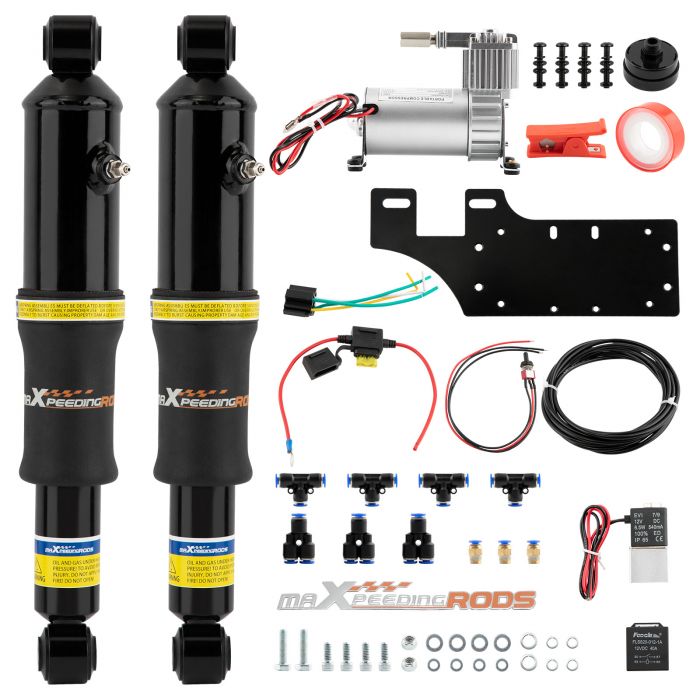

Package includes（as the picture shows）:
Air pump with mounting bracket x1
Relay x1
Solenoid valve x1
Air shock x2
Air line x1
Air Line Hose Cutter x1
Switch x1
Insurance compatible for seat x1
20A Fuse x1
Installation Instructions x1
Install bolts and nuts
Other Accessories
Feature
PREMIUM MATERIALS & TECHNOLOGY
Multi-ply air spring sleeve reduces noise.
Heavy-duty crimping rubber and connection compatible for seat withstands 2 MPa+ pressure, no detachment.
Polyurethane bump stop is durable, abrasion-resistant.
Nitrile rubber seals are oil-resistant and aging-resistant.
The connecting end is made of high-strength ST16 steel and integrally stamped.
6063 aluminum piston (≥3 MPa strength).
TPV dust cover: better flexibility and lifespan than TPE.
20μm chrome-coated piston rod for wear resistance.
RIGOROUS TESTING
100% Air tightness testing.
24-hour air tightness test ≤0.02 MPa.
Stress test over 5,000,000 times: durable and safe.
Operates in -58°F (-50°C) to 302°F (150°C) extremes.
TRUSTED QUALITY
Manufactured to strict quality control standards and compliant with ISO 9001.
Precise OE fit and performance.
CNC machined components.
PERFORMANCE & COMFORT
Upgraded adaptive damping system for precise control.
Restores ride height and enhances ride quality.
High compressive strength and sound insulation for a smooth, quiet drive.
Efficient heat dissipation for reliability.
Easy to install, with no special tools required.
INSTALLATION TIPS
Replace the old air fitting with a new one, insert the air tube into the air fitting cap to establish a proper connection.
Note
1. Will lower 2 to 3 inches with all of the air released. After being inflated, Restore the stock ride height to ensure smooth driving.
2. Please double confim the compatibility before purchasing.
3. Professional installation is recommended.
