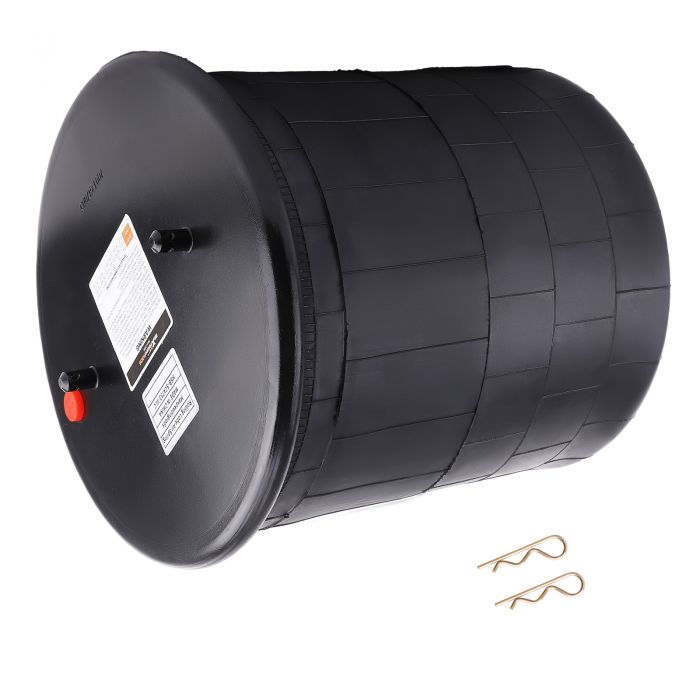

Air Spring Bellow Bag for Firestone W01-095-0500 for Goodyear 1R14-753
OE/Part number
replacement for Firestone W01-095-0500, W01-M58-9881, 1T19LJ-14, 1T19LJ14, 1T19LLJ-14, 1T19LLJ14, 1T19LAJ-14,1T19LAJ14, 1T19L SERIES CO1-M58-1160
replacement for Goodyear 1R14-753, 566-28-3-522, 566283522
replacement for ContiTech 4913NP02, 67254
replacement for Dunlop: D14B42, 00937A-AP, 00937AAP
Other parts number:
for Airtech: 132122, 136352, 34913C
for Blacktech: RML75024C
for CF Gomma: 206201, 1T19E-93
for Gart: 282.1.600, 2821600, 282.1.606, 2821606, C282/H, C282H, D287/H, D287H
for Neotec: ABM77133K55
for Phoenix: 1D28H-16, 1D28H16
for Primeride: 54913AP02, 1R14-753, 566-28-3-522
for Springride: 1R14-753, 566283522
for Vibracoustic: V1D28H-16, V1D28H16
for Scania: 1379392, 1440294, 1543691
Specification
The center distance of the top cover plate:144mm / 5.7 inch
Screw (nut) teeth of the bottom cover plate: M16
Air hole/air inlet: M16x1.5
Top plate diameter: 286mm / 11.3 inch
Diameter of the bottom cover: 227mm / 8.9 inch
Stroke: from 255mm/ 10 inch to 775mm/ 29.7 inch
Intern Jounce Bumper: Included
Quantity: 1 Piece
Condition: Brand New
Material: Natural rubber
Piston Material: SPHC Steel
Package Length, width and height: 45*38*37 cm/17.7*15*14.6 inch
Package Wight: 16 Kg/35 LBS
Feature
1、Highest leak test ratio: 100% Air Tightness Testing.
2、Tested over 4,000,000 times, most air springs are only tested 1,000,000 times.
3、Temperature Range ≥-40°F/≤158°F: Premium Natural Rubber Material.
4、The thickness of the rubber is 4.5-5.00mm.
5、12.9 grade high strength steel studs.
6、Withstand 2Mpa of air pressure before the rubber burst.
7、Careful evaluation of OEM specifications.
8、Strict quality control.
9、Sturdy & Durable Material.
10、Reduces Damage of Trailer, Cab And Truck Body.
11、Reduce driver discomfort and dangerous fatigue, improve driver safety.
12、Allow perfect load equalization between axles. Provide constant-level hauling.
13、Increase life of tires and brake linings.
14、Substantially reduce breakage and maintenance of other vehicle components.
