Air Spring Suspension Bags Leveling Kit Rear compatible for Ram 2500 2WD 4WD 2014-2025

SKU

300200009525

Skip to the beginning of the images gallery

Application

Compatible for Ram 2500 2WD 4WD 2014-2025

Note：
Fits all models, including Power Wagon.
Fits for Vehicles WITH or w/OUT in Bed Hitches and most side-mount fifth wheel hitches.
Not fit for vehicles equipped with factory air suspension.

Specification

Condition: Brand New
Minimum PSI: 5 PSI
Maximum PSI: 100PSI
Internal Jounce Bumper included: No
Placement on Vehicle: Rear left and right
Load capacity：Up to 7500 LBS
Design height：180mm
Stroke: 135mm
Max. Extended: 220mm
Min. Compressed: 85mm
Minimum height of whole kit: 112.5 mm
Maximum height of whole kit: 247.5 mm

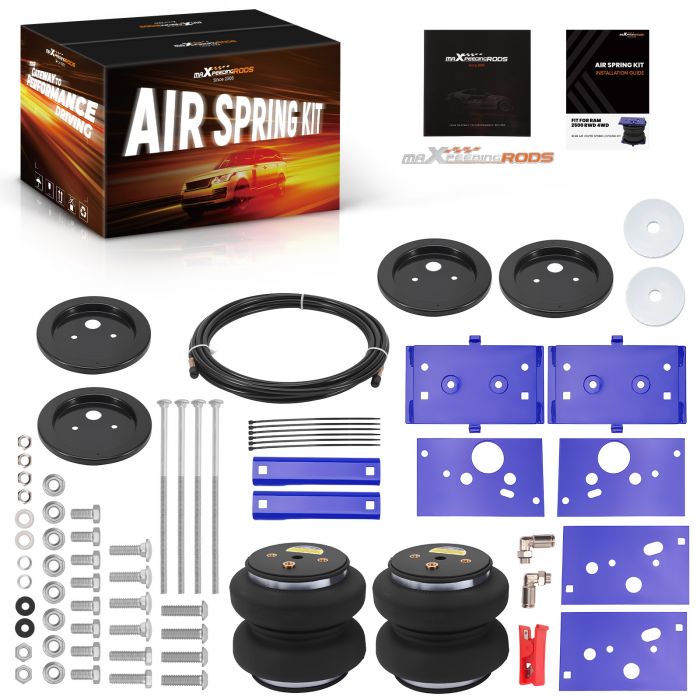

Package includes（as the picture shows）:
2x Extra Heavy Duty Double Bellow Air Ride Suspension bags
6x Upper and lower mounting brackets
1x Air line 5m
Includes All Brackets & Hardware Needed to Install

Feature

1、Stress Test Over 5,000,000 Times：Durable and Safe.
2、Burst Pressure≥2.0MPa：High Compressive Strength and Less Noise.
3、100% Air Tightness Guarantee.
4、Temperature Range ≥ -40℃/ ≤ 70℃ (≥ -40°F/≤ 158°F)：Premium Natural Rubber Material.
5、 4-Layer reinforcement construction: Enhances air spring load support.
6、Use high-quality steel with high load-bearing capacity and long life.
7、Excellent and practical bolt-on installation.
8、Safe carrying capacity and stability.
9、Restore the original ride height and improve ride quality.
10、Ensure our driving comfort and reduce tire wear.
11、Dacromet is a new surface treatment technology that has excellent corrosion resistance compared to traditional electroplating processes.
