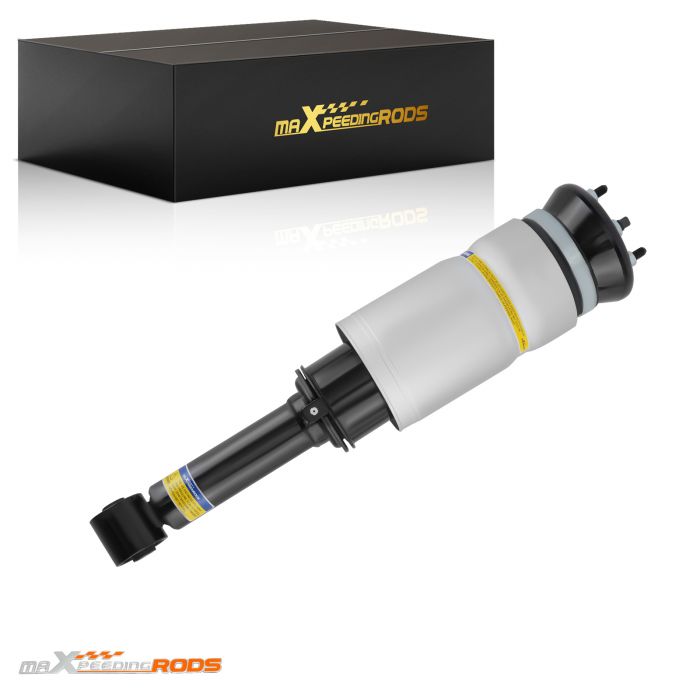

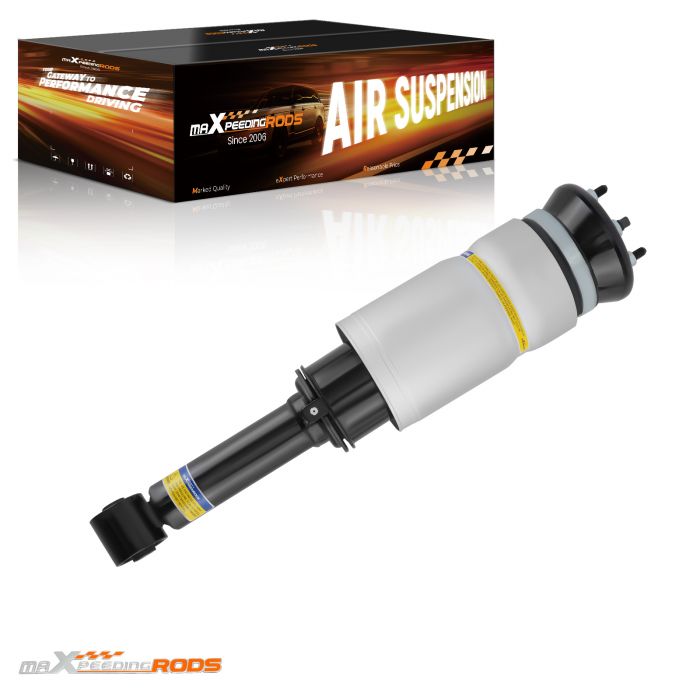

Front Left/Right Air Suspension Strut compatible for Range Rover Land Rover LR3 2005- 2009

Application

2005 - 2009 compatible for Land Rover Discovery LR3 L319
2010 - 2014 compatible for Land Rover Discovery LR4 L319
2006 - 2014 compatible for Land Rover Range Rover Discovery Sport L320
(W/O ACE、W/O VDS )

OE/Part number

LR013930, LR014194, LR016403,
LR016414, LR016415, LR016416,
LR016426,LR016427, LR018398,
LR032646 , LR034282 , LR034283,
LR034284 , LR041108, RNB501180，RNB501250,
RNB501460 , RNB501470,
RNB501480，RNB501580, RNB501590,
RNB501600 , RNB501610,
RNB501620, RNB000855 , RNB000856,
RNB000857 , RNB000858

Specification

Condition: 100% brand new
Part Type: Air Suspension Strut
Fitment Type: Direct Replacement
Note:No VDS sensor
Quantity: 1 piece (for Front left or right side)
Warranty: one year warranty for any manufacture defect
Package Dimensions ：73*21*21 cm
Weight [kg]:10.7 kg
Maximum length: 650MM
Compressed length: 85MM
Surface Finish: Rust Protected
Greasable or Sealed: Sealed
Adjustable: Yes
Operating Pressure (psi): ≤290 psi
Temperature range ≥-40℃ / ≤+70℃
Applicable Regions: Airmatic Suspension System

Feature

PREMIUM MATERIALS & TECHNOLOGY
Multi-ply air spring sleeve reduces noise.
Heavy-duty crimping rubber and connection compatible for seat withstands 2 MPa+ pressure, no detachment.
Polyurethane bump stop is durable, abrasion-resistant.
Nitrile rubber seals are oil-resistant and aging-resistant.
The connecting end is made of high-strength ST16 steel and integrally stamped.
6063 aluminum piston (≥3 MPa strength).
TPV dust cover: better flexibility and lifespan than TPE.
20μm chrome-coated piston rod for wear resistance.

RIGOROUS TESTING
100% Air tightness testing.
24-hour air tightness test ≤0.02 MPa.
Stress test over 5,000,000 times: durable and safe.
Operates in -58°F (-50°C) to 302°F (150°C) extremes.

TRUSTED QUALITY
Manufactured to strict quality control standards and compliant with ISO 9001.
Precise OE fit and performance.
CNC machined components.

PERFORMANCE & COMFORT
Upgraded adaptive damping system for precise control.
Restores ride height and enhances ride quality.
High compressive strength and sound insulation for a smooth, quiet drive.
Efficient heat dissipation for reliability.
Easy to install, with no special tools required.

INSTALLATION TIPS
Replace the old air fitting with a new one, insert the air tube into the air fitting cap to establish a proper connection.
