Aluminum Turbo Intercooler 710x190x65mm Universal Bar Plate with Air Guide Kit

SKU

300200028137

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Application

Four M8 threaded mounting points for universal fitment.

Specification

Material: aluminum with TIG welding.

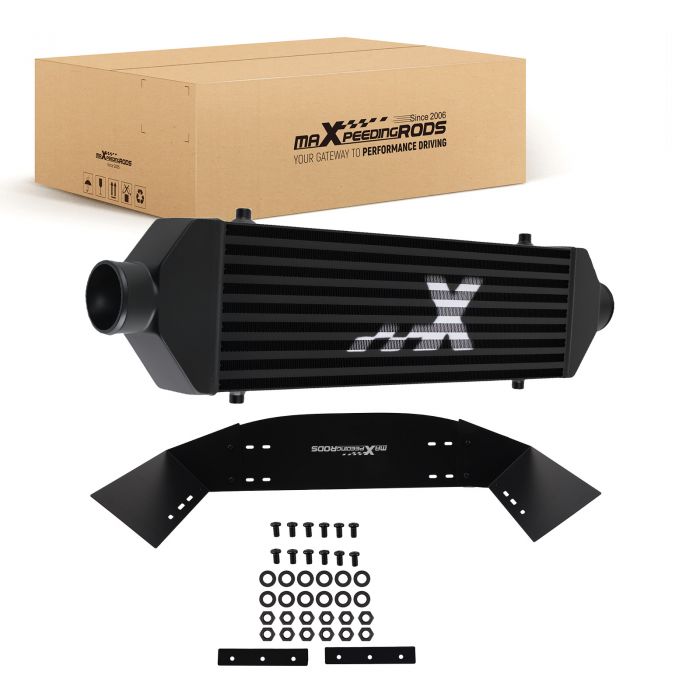

Package included

1 x Intercooler,
3 x Air Guide Panels,
12 x Screws，
12 x Nuts,
1 x User Manual.

Dimension

Inlet & Outlet: 63.5mm.
Overall Size: 710mmX190mmX65mm,
Core Size: 520mm×155mm×65mm.

Feature

*Air guide plates: A set of aluminum air guide plates for the intercooler is provided free of charge, with twelve M6 threaded mounting points, which can improve the heat dissipation efficiency by 25%-35%. Adjustable length and cuttable height to fit your intercooler.
*Heat dissipation efficiency: The Bar and plate intercooler has a 20%-50% higher heat dissipation efficiency than the tube and fin intercooler.
*Robust and durable: one-piece aluminum end tanks withstand high boost pressures.

Note

*Air guide plates installation method: Please note that the two mounting brackets need to be welded or bonded to the intercooler using structural adhesive (stand for 24hours without movement), and secure it with screws. This kit does not include structural adhesive.
*Please read the instruction manual carefully before installation.
