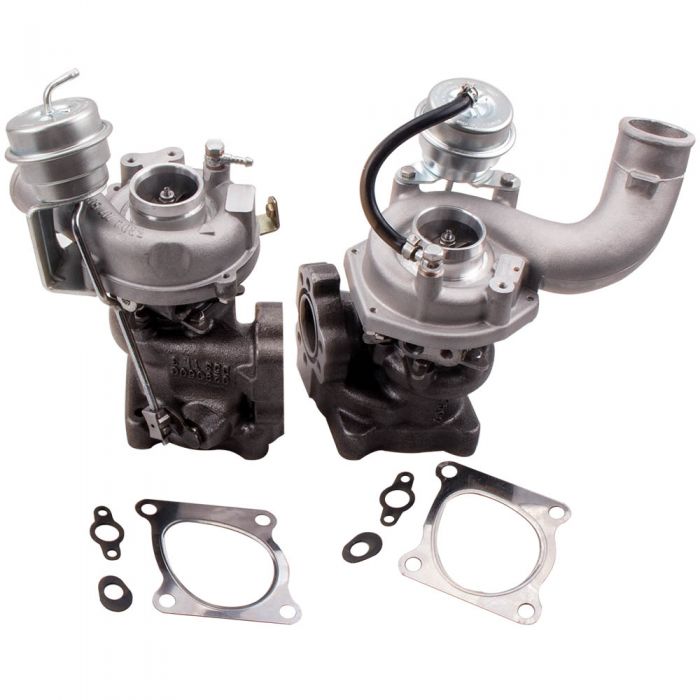

K04 025 026 Twin Turbo Turbocharger compatible for AUDI RS4 S4 A4 A6 QUATTRO 2.7L 1997-2001

SKU

300200016937

Skip to the beginning of the images gallery

Application

Compatible for Audi RS4 V6 Bi-turbo 2.7L P with AZR/ASJ Engine 2000-05
compatible for Audi A4 V6 Bi-turbo with AZR/ASJ Engine 2000-05

Note: For the car model below need modification:
Compatible for AUDI A6 2.7T QUATTRO 2.7L P AJK 97 - 01
compatible for AUDI S4 BI TURBO 2.7L P AGB/AZB 97 - 01
compatible for AUDI ALLROAD QUATTRO 2.7L P AJK/ARE/BES/AGB 02 -

OE/Part number

OE/PN Number:
53049880025，53049880026，
5304-988-0025, 5304-988-0026,
53049700025，53049700026，
5304-970-0025, 5304-970-0026,
078145701M, 078145702M,
078145703M, 078145703MX, 078145703MV
078145704M, 078145704MX, 078145704MV，

Note: For the OE/PN number below need modification:
53039880016, 53039880017,
53039700016, 53039700017,
078145701S, 078145702S, 078145703S, 078145704S,
078145701R, 078145702R, 078145703R, 078145704R,
078145701H, 078145702H, 078145703H, 078145704H,
078145701L, 078145702L, 078145703L, , 078145704L,
078145703B，078145704B,
078145703C, 078145704C,
078145703D, 078145704D，

* This K04-025/026 turbo can replace the k03-016/017 turbocharger, but you may need replace the intake hose of the cold side.
* For 2003-2005 A6 & Allroad, these will not fit on Automatic Transmission Models without Modifications

Specification

Turbo Model: K04-025 /K04-026
Engine: ASJ / AZR
Cooling Type：Water Cooling
Bearing Type: Journal Bearing
Thrust Bearing: 270 Degrees
Horsepower: 280KW/380PS
Condition: Brand New
Accessories: You will get exactly as shown in the picture above
Package Size: 49x 32 x 30 cm
Package Weight: 13700 g

Feature

* Product Material
1. Turbine housing ：Ductile iron QT450-10- temperature resistant up to 700℃
2. Steel turbine wheel：K418 alloy - high oxidation stability and resistance up to 900℃
3. Compressor housing：ZL104 aluminum with lightweight
4. Compressor wheel/blades：Cast aluminium blades – superior air tightness & corrosion resistance

* Product Performance
1. OEM-quality and size with little modification
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance

* Product Certification: TÜV ISO 9001 CERTIFIED

* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer

Note

* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
