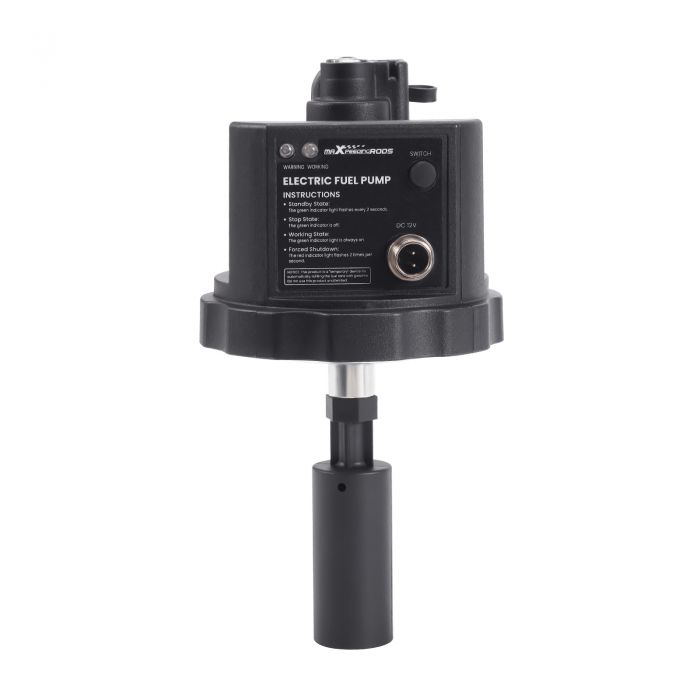

Automatic Generator Fuel Pump Extended Run Fuel For MXR2350 MXR3500 MXR4000

SKU

300800000113

Skip to the beginning of the images gallery

Application

For Generator Models: MXR2300, MXR2350, MXR3500, MXR3500S, MXR3800, MXR4000GT, MXR4000，MXR9000,MXR4500i Pro, MXR6000iE Pro

Package included

( 1 ) × Electric Fuel Pump
( 1 ) × 12V DC Power Plug (Clip)
( 1 ) × 12V DC Power Plug
( 1 ) × Fuel Hose
( 1 ) × 12 DC Power Cable
( 1 ) × Owner’s Manual
( 2 ) × Fuel Tank Adaptor

Feature

【Automated Design】The sensor inside the electronic fuel pump will always monitor the fuel level in the fuel tank and automatically pump fuel, which can extend the running time of the generator without shutting down. The external fuel tank capacity from 5-17GAL can be selected to meet the continuous running time. Note: check the fuel tank depth and fuel cap thread match the fuel pump.
【Easy Operation】The operation is simple and can be opened with one click to start monitoring.The quick connect fuel port, easy and reliable connection to the external fuel tank.(The fuel tank needs to be purchased separately).
【Wide Applications】Specifically designed for our small generators and can fit our following generator models:MXR2300, MXR2350, MXR3500, MXR3500S, MXR3800, MXR4000GT, MXR4000，MXR9000,MXR4500i Pro, MXR6000iE Pro.
【Various Accessories】Contains all accessories needed for the generator to pump fuel automatically.1*Electric Fuel Pump, 1*12V DC Power Plug (Clip) ,1*12V DC Power Plug,1*Fuel Hose,1*12 DC Power Cable,2*Fuel Tank Adaptor(Suitable for various fuel tanks)
【Two Power Supply Methods】If your generator has a DC 12V output socket, you can directly use this socket to supply power; if your generator does not have a DC 12V output socket, you can choose to use other DC 12V power supply to power the electric fuel pump.(such as DC 12V battery)

Note

NOTICE:
*If the fuel pump does not reach the high oil level after running for the set working time, it will be forced to stop and enter in the protection state. At this time, it is necessary to check whether there is no gasoline in the fuel tank or the fuel pipe is blocked, or the fuel pump does not work.
*Every time you press the fuel pump switch button, the fuel pump will wait for 5 seconds before starting.
*After the forced shutdown, you need to disconnect the power or press the fuel pump switch button to restart.

Warranty

Maxpeedingrods warrants the electric fuel pump against defects in workmanship under normal use for a period of 1 years from the date of retail purchase by the original end-user purchaser ("Warranty Period"), and free lifetime technical support and customer service.
