Big Bore Cylinder Piston Gasket Kit compatible for Yamaha Raptor 660R 102.00mm x 84.00mm

Application

Compatible for Yamaha Raptor 660R 2001-2005
compatible for Yamaha Grizzly 660 2002-2008
compatible for Yamaha Rhino 660 2004-2007

Specification

Complete 686cc Big Bore Cylinder Kit
Cylinder Bore and Stroke 102.00mm x 84.00mm
Includes High-Compression Hardened Aluminum Piston Kit, Gasket Kit and More

OEM or Interchange Part Number:
3YF-11181-00-00, 5KM-11310-00-00,3YF-11351-00-00, 2C6-11603-00-00
93450-24028-00, 3YF-11631-00-X0, 3YF-11633-01-00, 90201-102G9-00
90105-10649-00, 90105-09648-00, DPR-8EA90-00-00, 3YF-11310-01-00

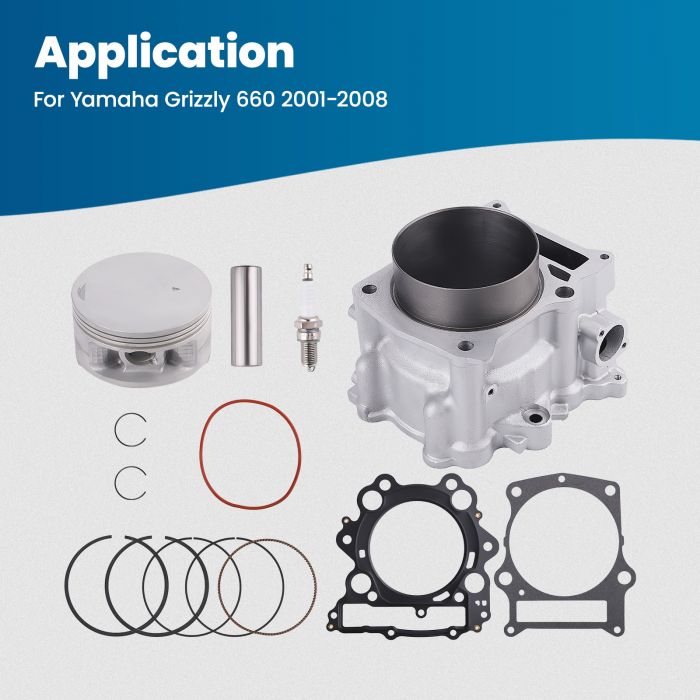

Package Includes:

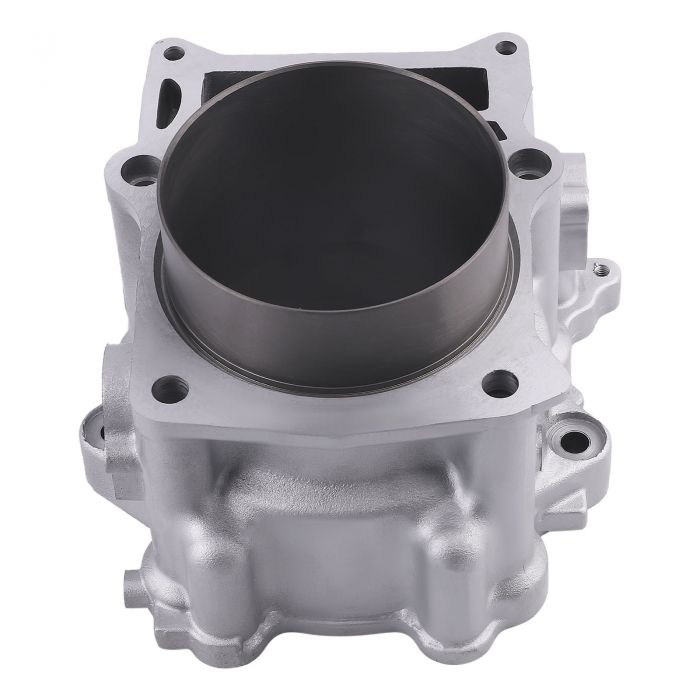

Cylinder
Piston
Piston Rings
Wristpin
Circlips(2)

Head Gasket
Base Gasket
O-Ring
Spark Plug
Just like the picture shown

Notice

* No instruction included, professional installation suggested.
* For any needs please contact us.
