Boat Assembly Set compatible for Yamaha 40-60HP 2/4-Stroke 1995-2022 63D-W0078-01

SKU

300800000349

Skip to the beginning of the images gallery

Application

Compatible for Yamaha Outboard as Following:40HP 2-Stroke 40E/40M/40T/P40 Except C40/F40 Edition 1995-2005
compatible for Yamaha Outboard as Following:40HP 2-Stroke C40 1997-2003
compatible for Yamaha Outboard as Following:40HP 4-Stroke F40 1999
compatible for Yamaha Outboard as Following:50HP 2-Stroke 50E/50T/C50/P50 Except T50 Edition 1995-2009
compatible for Yamaha Outboard as Following:50HP 4-Stroke F50 1995-2022
compatible for Yamaha Outboard as Following:60HP 4-Stroke F60 2002-2022

OE/Part number

63D-W0078-01-00,63D-W0078-00-00,63D-W0078-03-00,6H3-44352-00,63D-W0078-01, 63D-W0078-01-00,63D-44322-00-00,18-3434

Specification

Type:Outboard Water Pump Impeller Repair Kit
Material：Rubber+Stainless Steel+Plastic

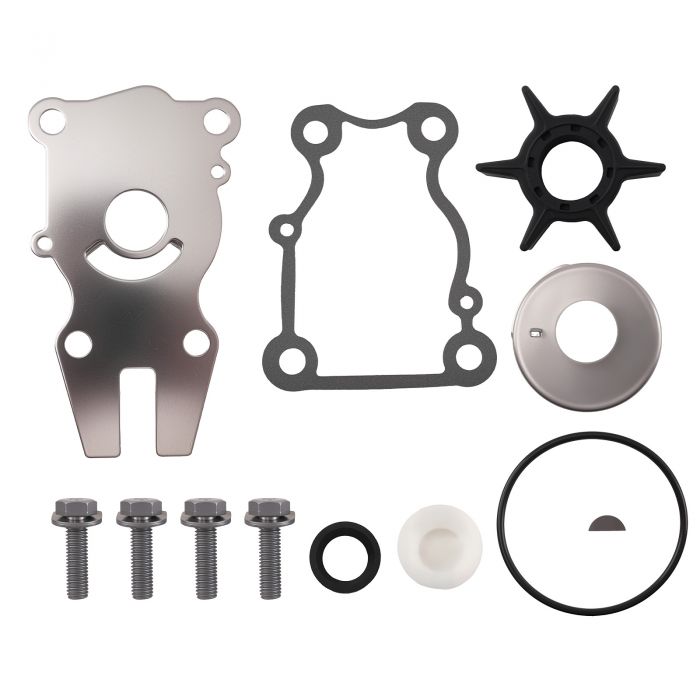

Package included

1*Impeller 6H3-44352-00
1*Wear Plate 63D-44323-00
1*Insert Cup 63D-44322-00
1*Gasket Water Pump 63D-44316-00
1*O Ring 93210-59MG7
1*Woodruff Key 90280-03024
1*Cover Pump HSG. 63D-44312-00
1*Damper, Water Seal 663-44366-00
4 *Installation bolt and washer 97080-06405-00
(It same to the picture shown )
