Boat Impeller Assembly compatible for Yamaha 40-60HP 1995-2009 63D-44311-00 Full Kit

SKU

300800000348

Skip to the beginning of the images gallery

Application

For the Following compatible for Yamaha 2-Stroke Applications:40 hp 2-Stroke 1995 - 2005
For the Following compatible for Yamaha 2-Stroke Applications:40 hp 2-Stroke (Model C40) 1997 - 2003
For the Following compatible for Yamaha 2-Stroke Applications:40 hp 2-Stroke (Model P40) 1998
For the Following compatible for Yamaha 2-Stroke Applications:50 hp 2-Stroke 1998 - 2009
For the Following compatible for Yamaha 2-Stroke Applications:50 hp 2-Stroke (Model C50) 1998 - 2001
For the Following compatible for Yamaha 2-Stroke Applications:50 hp 2-Stroke (Model P50) 1995 - 1996
For the Following compatible for Yamaha 4-Stroke Applications:40 hp 4-Stroke (Model F40) 1999
For the Following compatible for Yamaha 4-Stroke Applications:50 hp 4-Stroke (Model F50) 1995 - 2009
For the Following compatible for Yamaha 4-Stroke Applications:60 hp 4-Stroke (Model F60) 2002 - 2009

OE/Part number

63D-44311-00,63D-W0078-00,63D-W0078-03,63D-W0078-02,63D-W0078-01,63D-44311-00-00,63D-W0078-00-00,63D-W0078-01-00,63D-W0078-02-00,63D-W0078-03-00,18-3415,18-3434

OE/Part number

1*Neoprene Impeller 6H3-44352-00
1*Water Pump Housing 63D-44311-00
1*Wear Plate 63D-44323-00
1*Insert Cup 63D-44322-00
1*Gasket Water Pump 63D-44316-00
1*O Ring 93210-59MG7
1*Woodruff Key 90280-03024
1*Cover Pump HSG. 63D-44312-00
1*Damper, Water Seal 663-44366-00
4 *Installation bolt and washer 97080-06405-00

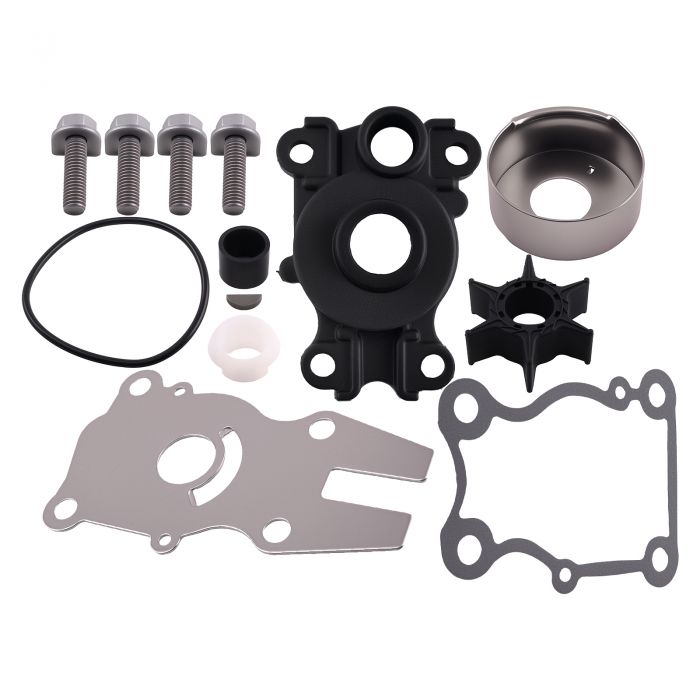

(It same to the picture shown )

Specification

Type:Outboard Water Pump Impeller Repair Kit
Material：Rubber+Stainless Steel+Plastic
