Cam Timing Tool Kit compatible for Cummins ISX QSX X15 Engines Black 3163530 2007-2017

SKU

300200007644

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Application: Compatible for Cummins ISX QSX X15 Engines 2007-2017

OE/Part number:3163021,3163530,3163069,3163020

Specification:

Perfectly fit for all Cummins Engines 2007-2017.

Directly replace OEM Cam Timing Tools 3163021, Cam Gear Puller 3163069, Crank Pin 3163020 and 3163530 Engine Brake Adjustment Tool 7MM.

Material: 45# steel

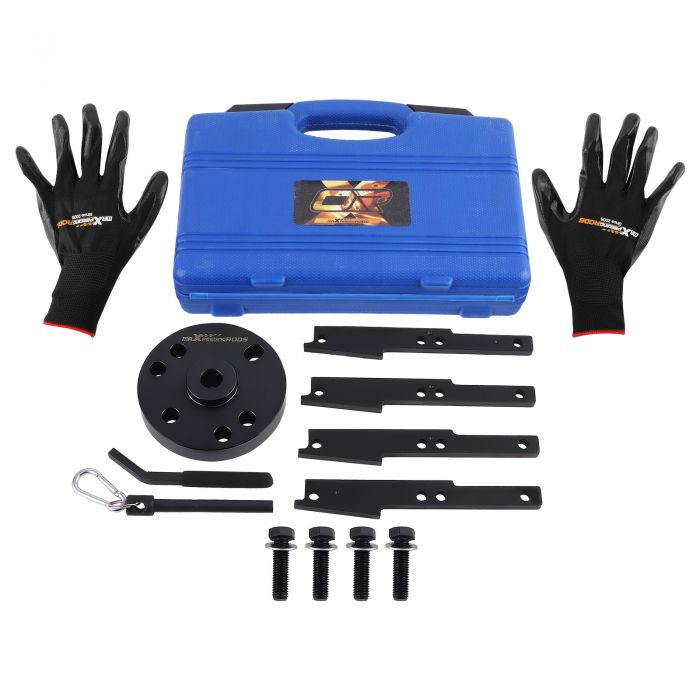

Package included:

1pc Crank Pin (3163020)
1pc Cam Gear Puller (3163069)
1pc Jake Brake Tool (7MM) Feeler Gauge
4pcs Washers
4pcs Screws
4pcs Wedge Kits (1pc 4° Wedge; 2pc 6° Wedges; 1pc 7° Wedge)
Carrying compatible for Case*1

Feature:

*Perfect Design — Used for setting the gear train timing on compatible for Cummins engines with single or double camshaft. Insert the brake tool between the slave pistons contact surface with the exhaust valve adjusting screw to adjust screws on each cylinder. Works in an easier way to save your time and money.

Note:

1.The green band on the timing pin will be lined up with the surface of the timing pin boss of the block. The pin is not correctly seated in the crank notch if the green band is either completely visible outside the block, or is not visible at all.
2.Make sure the wedges with the proper angles are used and that the wedges are properly seated in their installed position.
3.Do not insert the feeler gage between the valve stem and the exhaust valve adjustment screw foot, incorrect lash will result.
