Camshaft Timing Tool Kitfor compatible for Porsche Volkswagen VWT40331 T90002 T40382
Application
engine：2.9-l six-cylinder (2.9 TFSI)
Manufacturer model series Construction period.
Output: 324 kW (440 hp) at 5650–6600 rpm, torque: 550 Nm at 1750–5500 rpm
compatible for Porsche Panamera II since 11/2016
compatible for Porsche Cayenne III since 08/2017
compatible for Porsche Macan since 08/2019
Power: 331 kW (450 hp) at 5700-6700 / min, torque: 600 Nm at 1900-5000 / min
compatible for Audi RS4 B9 since 11/2017
compatible for Audi RS5 F5 since 06/2017
engine：3.0-l six-cylinder (3.0 TFSI)
Manufacturer model series Construction period.
Output: 243 kW (330 hp) at 5400-6400 / min, torque: 450 Nm at 1340-4900 / min
compatible for Porsche Panamera II since 11/2016
Output: 250 kW (340 hp) at 5000–6400 rpm, torque: 500 Nm at 1370–4500 rpm
compatible for Audi A6 C8 since 01/2019
compatible for Audi A6 allroad four C8 since 09/2019
compatible for Audi A7 C8 since 02/2018
compatible for Audi A8 D5 since 09/2017
compatible for Audi Q7 since 09/2019
compatible for Audi Q8 since 02/2019
Output: 250 kW (340 hp) at 5300-6400 / min, torque: 450 Nm at 1340-5300 / min
compatible for Porsche Cayenne III since 08/2017
compatible for Volkswagen VW Touareg III from 04/2018
Output: 260 kW (354 hp) at 5400-6400 / min, torque: 500 Nm at 1370-4500 / min
compatible for Audi S4 B9 since 11/2016
compatible for Audi S5 F5 since 07/2016
compatible for Audi SQ5 FY since 06/2017
compatible for Porsche Macan since 12/2018
OE/Part number
T40331,T90002,T40382,T90001
Specification
E24 size：22MM
wrench size：32MM
screw extraction bit size ：200MM
crankshaft locking pin size ：75MM，14MM*1.5
Crankshaft and Balancer Shaft Fixing Pin size：90MM，8MM*1.25
Material: 45# carbon steel

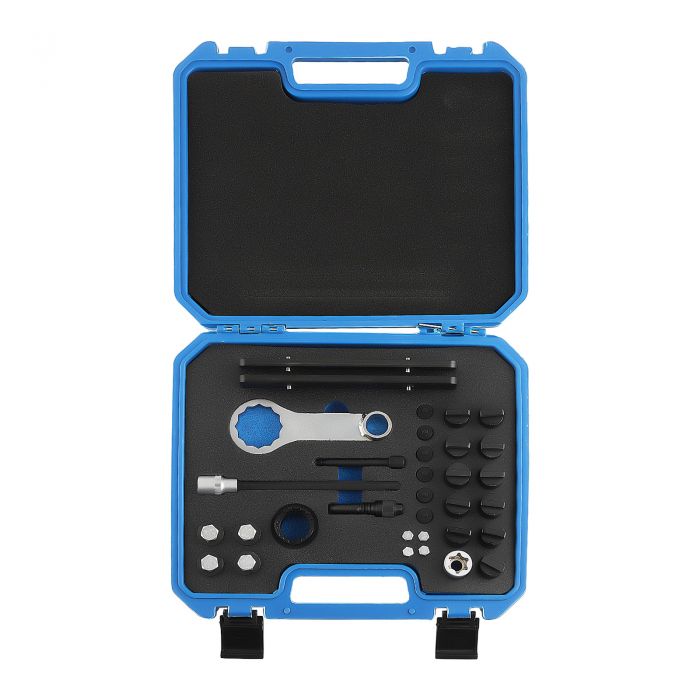

Package included
Camshaft aligning toolT40331（23 pcs）
wrenchT90002*1
screw extraction bit T40382*1
E24 Socket Camshaft Sprocket Adjust Tool*2
crankshaft locking pin*1
Crankshaft and Balancer Shaft Fixing Pin*1
(As shown in the figure）
Feature
Application: When disassembling and installing the timing chain of the camshaft, it is necessary to use the camshaft locking fixture T40331 to secure the camshaft in place. This specialized tool is used for cylinder banks 1 and 2 simultaneously.
Scope: Camshaft Alignment Timing Tool compatible with compatible for Audi A4 2016 > 6 cylinder. Direct injection engine 3.0L TFSI 4V engine EA 839, compatible with compatible for Porsche 3.0T 2.9T hybrid version, etc.
Note
Measurement errors may occur, please refer to actual measurements.
