Coilover Damper Suspension compatible for BMW E92 E93 325 328 330 335 07-11 Lowering Kit
Introduction
maXpeedingrods-B2 coil-overs are designed as entry-level for street use. It features height adjustable and adjustable camber plates (applicable for some vehicles), which offer you a lowered stance, and improved performance for your daily use vehicle.
Application
Compatible for BMW 3 (E90) (2004-2011) 316i, 318i, 320i, 323i, 325i, 328i, 330i, 335i, 316d, 318d, 320d, 325d, 330d, 335d.
Compatible for BMW 3 Touring (E91) (2004-2012) 316i, 318i, 320i, 323i, 325i, 328i, 330i, 335i, 316d, 320d, 325d, 330d, 335d.
Compatible for BMW 3 Coupe (E92) (2005-2013) 316i, 318i, 320i,323i,325i,328i,330i,335i,320d,325d,330d, 335d
compatible for BMW 3 Convertible (E93) (2006-2013) 318i, 320i, 323i, 325i, 330i, 335i, 320d, 330d, 325d.
Note:
This product fits RWD vehicles only, not for the M3 model.
Specification
Front top mount: Pillow ball with camber plate
Rear top mount: OE top mounts required
Damping adjustable: Not available
Camber adjustable: Available
Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
Spring Rate Front: 8 kg/mm (448 lbs/in)
Spring Rate Rear: 12 kg/mm (672 lbs/in)
Front spring inner diameter: 70.5mm
Rear spring inner diameter: 62mm
Spring length Front: 180 mm
Spring length Rear: 230 mm
Shock type: Twin tube
Spring Preload advised: 7-10 mm
Damping rod diameter Front: Φ 22 mm
Damping rod diameter Rear: Φ 12.5 mm
Damping thread Front: M55×2 mm
Damping thread Rear: M55×2 mm
Twin -tube Diameter Front: 55 mm
Twin -tube Diameter Rear: 55 mm
Rod End Thread Front: M14×1.5 mm
Rod End Thread Rear: M12×1.25 mm
Front Collapsed Length: 395 mm / 15.55"
Front Extended Length: 450 mm / 17.72"
Rear Collapsed Length: 570 mm / 22.44"
Rear Extended Length: 640 mm / 25.2"
Color: Golden body with black spring

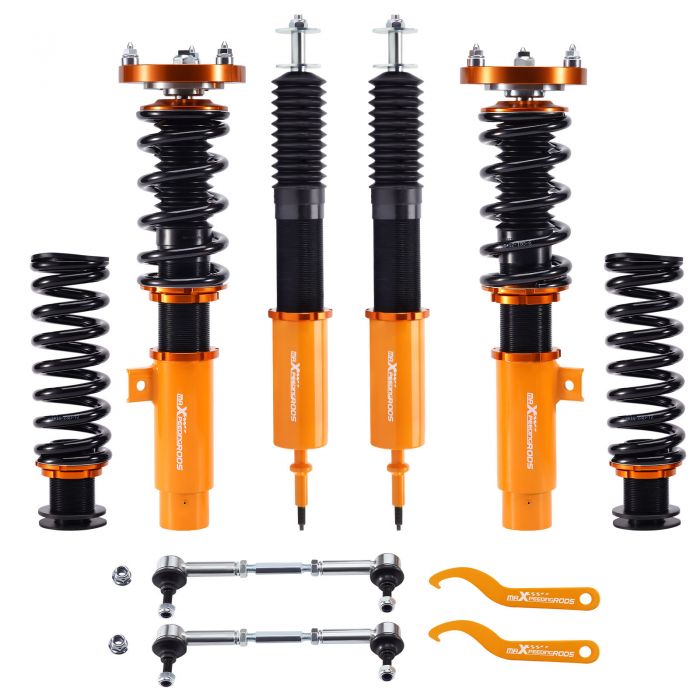

Package included
Package included：
2x Front coil-overs
2x Rear coil-overs
2x Sway bar end links
2x C spanners
Dimension
Package Size: 62*50*20 cm
Weight: 28850 g
Feature
1. Lowered height adjustment from 25-75mm (depends on vehicle models)which allows a lower center of gravity and also add a more aggressive stance
2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent
3. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response.( for some models)
4. CNC machined Aluminum top mounts and lockers-- - excellent strength, and save weight
5. Heavy‑duty steel lower mounts designed for secure installation.
6. High tensile spring--- 300,000 times continuously test to assure its high tensile strength.
7. All inserts come with pre-fitted long rubber boots for enhanced damper protection against dust, dirt, and debris.
8. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
9. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts
Note
1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
5. Regular maintenance is recommended for the coil-over. Applying WD-40 or a suitable protective spray every 3–4 months can help keep the components clean and moving smoothly.
