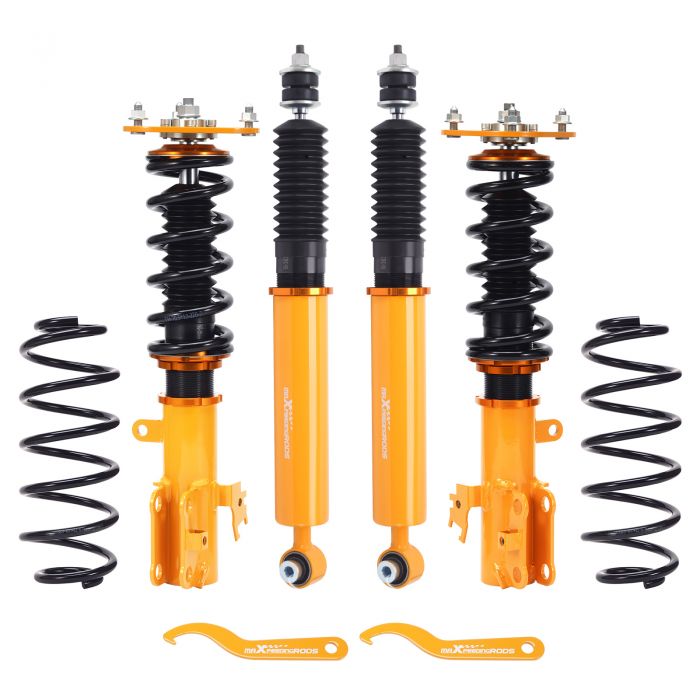

Adjustable Coilovers Suspension Kit compatible for Scion iM 2016 / Compatible for Corolla iM 2017-18

Introduction

MXR-B2 coil-overs are designed as entry-level for street use. It features height adjustable and adjustable camber plates (applicable for some vehicles), which offer you a lowered stance, and improved performance for your daily use vehicle.

Application

Compatible for TOYOTA COROLLA IM ZRE18_ 2017-2018 USA compatible for FWD only
compatible for SCION IM ZRE18_ 2015-2016 USA compatible for FWD only

Specification

Front top mount: Pillow ball
Rear top mount: OE top mount required
Damping adjustable: Not available
Camber adjustable: Not available
Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
Spring Rate Front: 7 kg/mm (392 lbs/in)
Spring Rate Rear: 5 kg/mm(280 lbs/in)
Spring length Front: 220 mm
Spring length Rear: 340 mm
Spring Preload advised: 7-10 mm
Color: Golden body with black spring

Package included

Package included：
2 x Front coil-overs
2 x Rear coil-overs
2 x C spanners

Dimension

Package Size: 71*51*21 cm
Weight: 28650 g

Feature

1. Lowered height adjustment from 25-75mm (depends on vehicle models)which allows a lower center of gravity and also add a more aggressive stance
2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent
3. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response.( for some models)
4. CNC machined Aluminum top mounts and lockers-- - excellent strength, and save weight
5. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable
6. High tensile spring--- 600,000 times continuously test to assure its high tensile strength.
7. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.
8. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
9. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts
