Coilovers compatible for BMW E46 328 325 330 1999-2005 24 Ways Dampers Springs Lowering Kit

SKU

3002916947

Skip to the beginning of the images gallery

Introduction

MaXpeedingrods-B3 is based on MaXpeedingrods-B2 coil-overs, which are also height adjustable. They are also made for street use, but the 24-level rebound damping control allows you the ability to dial in your coil-over setup. You will experience better ride quality in all road conditions.

Application

Compatible for BMW 3 (E46) 4-door sedan 318i; 330i; 325i; 328i; 318d; 320d; 320i,325i ;330d (02/1998-04/2005)
Compatible for BMW 3 2-door Convertible (E46) 318i; 330ci; 325ci;323ci; 320cd,330cd (04/2000-12/2007)
Compatible for BMW 3 2-door Coupe (E46) 318i; 320ci; 325ci; 330ci;320cd; 330cd; (02/1999-12/2006)
Compatible for BMW 3 Touring 5-door wagon/estate (E46) 316i; 318i; 325i; 328i; 330i; 323i; 325i; 318d; 320d; 330d; (10/1999-05/2005)
Note: not for Xi/xd 4 wheel drive, not for M3 model either

Specification

Top mounts: front pillow ball top mounts with camber plate
rear pillow ball top mounts
Damping: 24 levels rebound damping adjustable
Spring rate: front 8kg/mm
Spring rate: rear 7kg/mm
Adjustable height: Yes lowering 1'' to 3''
Shock type: Twin tube
Spring Preload: 7-10 mm
Color: black body with black spring

Package included

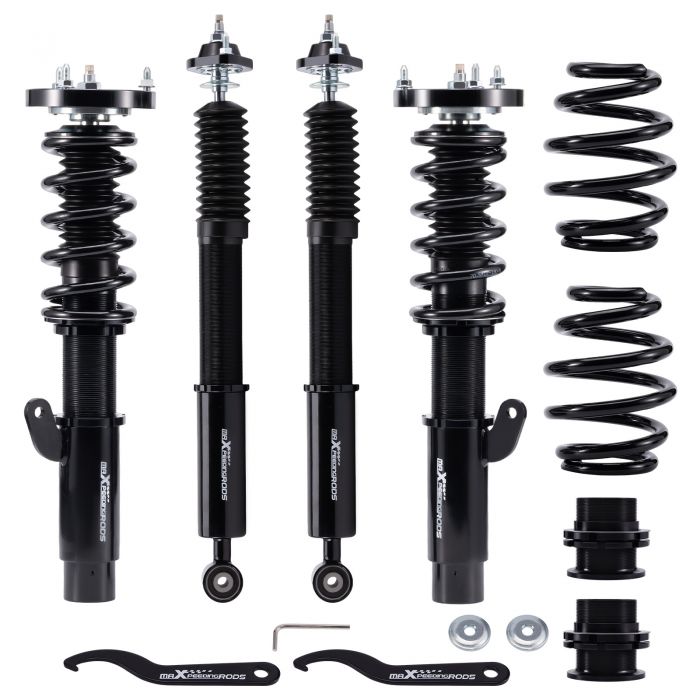

coilovers for 2 front and 2 rear
a pair wrench for height adjustment

Dimension

weight: 25260g
size: 61*51*21 cm

Feature

1. Lowered height adjustment from 1''-3'' which allow lower center of gravity and also add a more aggressive stance
2. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.
3. Twin-Tube structure allows sufficient stroke within the shock absorber
4. Separate height adjustment does not affect damper stroke
5. High Tensile performance spring – STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus, the special surface treatment improves the durability and performance.
6. Height Adjustment tools included
7. Camber plate top mounts help to eliminate the need for a separate camber kit
8. Pillow ball top mount - It improves the steering feel and response
9. Most pieces in our Coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.
10.Full rebuildable

Note

Caution: OE shims need to be installed on the rear eye bolt bushings.
