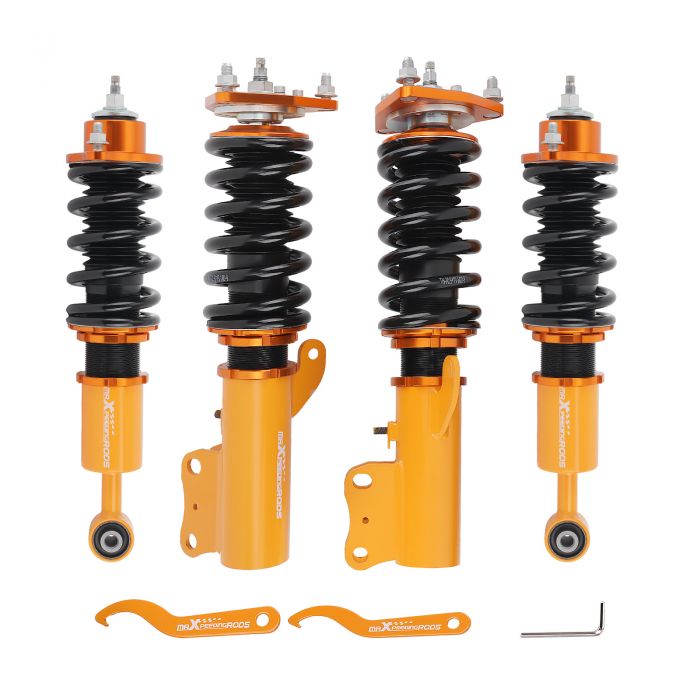

24 Way Damper Coilovers Struts Kit Compatible for Mitsubishi Lancer Sedan 4-Door 2008-2016

SKU

3002917387

Skip to the beginning of the images gallery

Introduction

MXR-SLC based on MXR-SNA coilovers, which is also height adjustable but adds damping adjustment ability by a knob the top of the shaft. They are also made for street use, but the 24 level rebound damping control allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.

Application

Compatible for Mitsubishi Lancer(CX/CY) 2008-2016, except Lancer Evolution
compatible for Mitsubishi Outlander Sport(GA) 2011-2020

Specification

Top mounts: pillow ball top mount with camber plate front, standard rubber top mount rear.
Damping: 24 levels rebound damping adjustable.
Front Spring Rate: 9kg/mm (504 lbs/in).
Rear Spring Rate: 6 kg/mm (336 in/lbs).
Adjustable Height: Yes lowering 1" to 3".
Shock type: Twin tube.
Spring Preload: 7-10 mm.
Color: gold.

Package included

product included: complete coilovers 2 front and 2 rear,a pair wrench for height adjustment.

Dimension

Gross weight: 23.8kg
Package size: 63*51*20cm

Feature

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.
2.Camber plate top mounts help to eliminate the need for a separate camber kit.（Front Only)
3.Pillow ball top mount - It improves the steering feel and response.（Front Only)
4. Rubber top mounts help to deliver a smooth and forgiving ride for city use at any speed and rubber joints assist in absorbing hard impacts. (only rear)
5. Twin-Tube structure allows sufficient stroke within the shock absorber.
6. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
7. Separate height adjustment does not affect damper stroke.
8. Height can be adjusted with coilovers installed on the vehicle.
9. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
10. Height Adjustment tools included.
11. Full rebuildable.
12.A 24 rebound dampening adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.

Notice

Notice: The coilovers kit will "Lower your car" and does not keep to the original ride height.
