Cylinder Piston Gasket Top End Kit compatible for Yamaha Kodiak Grizzly 400 YFM40 2000-2008

Application

Compatible for Yamaha Kodiak 400 2000-2006
compatible for Yamaha Grizzly 400 2007-2008

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

OE/Part number

Cylinder: 5GH-11310-00-00
Piston: 5GH-11631-00-00
Piston Ring Set: 5GH-11603-00-00
Wristpin: 3LD-11633-00-00
Circlip(2): 93450-22027-00
Head Gasket: 5GH-11181-00-00
Base Gasket: 5GH-11351-00-00
Chain Tensioner Gasket: 3GD-12213-00-00
Cylinder Head O-Ring: 93210-89447-00
Radiator Hose O-Ring: 93210-33786-00
Clutch O-Ring: 93210-18322-00

Specification

1.Condition:New
2.Actual Displacement: 400cc
3.Bore Size: STD 84.50 mm
4.Piston diameter: 84.50 mm
5.Piston height: 52.30 mm
6.Piston pin diameter: 20 mm
7.Piston pin height: 58 mm

Package included

1x Cylinder
1x Piston(STD)
1x Piston Ring Set
1x Wristpin
1x Circlip(2)
1x Cylinder Head Gasket
1x Cylinder Base Gasket
1x Chain Tensioner Gasket
1x Cylinder Head O-Ring
1x Radiator Hose O-Ring
1x Clutch O-Ring
1x Spark Plug

Feature

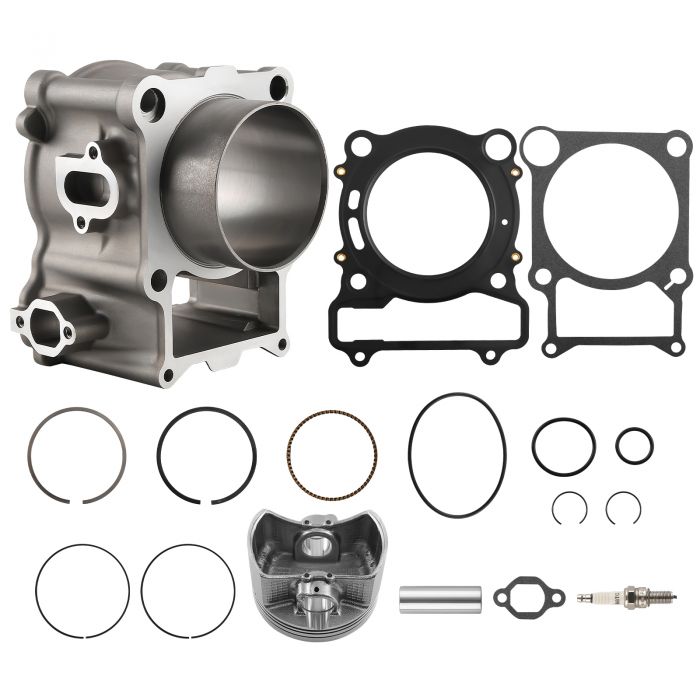

1.Kit includes piston, rings, pin, clips, spark plug & top end gasket kit (you get exactly what is pictured).
2.Cast piston has super-high silicone content for additional strength.
3.Piston skirts are Molybdenium Teflon coated to minimize resistance/wear and provide extended life.
4.Piston dome is anodized for superior heat resistance and longer lifespan.
5.The gaskets use performance materials to increase durability and provide greater reliability.
6.Includes all gaskets pictured to rebuild top end.
7.Kit is for standard bore size - 84.50mm.
8.All of the components within this kit are bolt-on ready for a hassle free installation.

Note

1.Ring end gaps are checked prior to shipment for proper sizing.
2.Please check out the product and size fits your motorcycle or not before you purchase.
