Cylinder Piston Gaskets Top End Rebuild Kit compatible for Honda Foreman 500 TRX500 05-11

SKU

300200001387

Skip to the beginning of the images gallery

Application

Compatible for Honda TRX500FM/FE Fourtrax Foreman 4x4/S/ES 2005-2011
compatible for Honda TRX500FPE/FPM Fourtrax Foreman 4x4/ES/EPS 2007-2011
compatible for Honda TRX500TM Fourtrax Foreman 2x4 2005-2006

OE/Part number

12100-HP0-A00,12191-HP0-A00,12251-HP0-A00,12315-HP0-A00,13010-HP0-A01,13111-HN2-000,12100HP0A00,12191HP0A00,12251HP0A00,12315HP0A00,13010HP0A01,13111HN2000

Specification

Material: Aluminum
Type: Cylinder Gasket Piston Rings Set
Vehicle Type: ATV
Fitment Type: Direct Replacement
Actual Displacement: 475cc
Bore Size: 92 MM
Piston Diameter: 91.96MM
Piston Height: 59.23MM
Piston Pin Diameter: 20MM
Piston Pin Height: 62MM

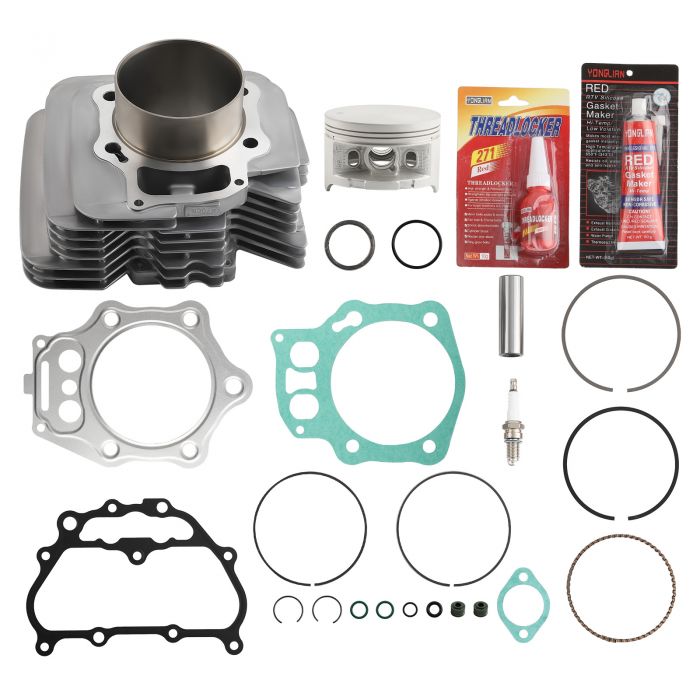

Package included

1*Cylinder
1*Piston
1*Piston Ring Set
1*Wristpin
1*Circlip(2)
1*Cylinder Base Gasket
1*Cylinder Head Gasket
1*Cylinder Head Cover Gasket
1*Spark Plug

Feature

1. Cast Piston Has Super-High Silicone Content For Additional Strength.
2. Piston Skirts Are Molybdenium Teflon Coated To Minimize Resistance/Wear And Provide Extended Life.
3. Piston Dome Is Anodized For Superior Heat Resistance And Longer Lifespan.
4. The Gaskets Use Performance Materials To Increase Durability And Provide Greater Reliability.
5. All Of The Components Within This Kit Are Bolt-On Ready For a Hassle Free Installation.

Note

1. Fitment above is for reference only, please check the part number and the size of cylinder bore before you purchase.
2. Professional installation is highly recommended.
3. Please allow 1-3mm error due to manual measurement, thanks for understanding.
4. Please kindly understand that the actual color may slightly vary from presented pictures due to different monitor.
