Electric Fuel Pump Assembly compatible for Volkswagen Passat 2.5L 12-14 561919051B FG1964

Application

Compatible for Volkswagen Passat l5 2.5L 2012-2014

OE/Part number

E9094M,FG1964,P77047M,561919051B,3C0919051AJ,SP5112M,A30502,,3C0-919-051AJ,561-919-051B

Specification

Drive Type: Electrical
Fuel Type: Gasoline
Voltage(V): 12
Flow Rate(Gallons/Hour): ≥35.64
Pressure(MPa): 0.3
Weight(kg): 1.2
Inlet Type: /
Inlet Quantity: /
Outlet Type: Quick Connect
Outlet Quantity: 1
Material: Plastic(POM)+Steel(Q235)
Housing Material: Plastic
Fuel Sending Unit Included: Yes
Fuel Pressure Sensor Included: No
Fuel Level Sensor Included: Yes
Float Included: Yes
Fuel Reservoir Included: Yes
Fuel Strainer Included: Yes
Seal Ring Included : No
Placement on Vehicle: Rear (Fuel Tank)

Package included

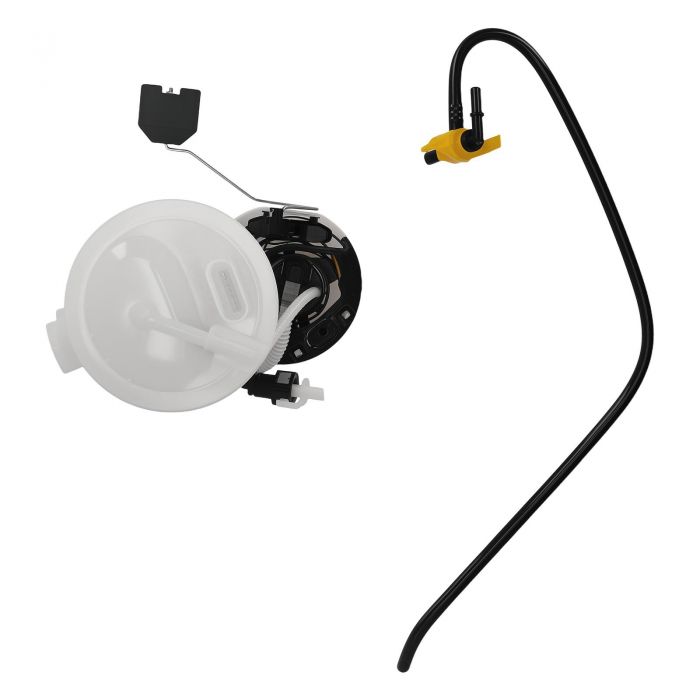

1X Fuel Pump Module Assembly (as shown in the picture)

Feature

1.Raw Material for key parts from same supplier as OE
2.Fuel Level Sensor Wet Durability Testing ≥ 1 Million times
3.Pressure Valve Durability Test ≥ 500,000 times
4.High temperature durability testing≥ 600 hours(60℃)
5.100% test

Note

1.Attached installation manual.
2.Professional Installation Is Highly Recommended.
3.Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.
