Electric Fuel Pump Module Assembly for 1998 compatible for Ford Escort 2.0L F8CZ9350AA

Application

Compatible for Ford Escort LX Sedan 4-Door 2.0L 1989CC 121Cu. In. l4 GAS SOHC Naturally Aspirated 1998
compatible for Ford Escort SE Sedan 4-Door 2.0L 1989CC 121Cu. In. l4 GAS SOHC Naturally Aspirated 1998
compatible for Ford Escort SE Wagon 4-Door 2.0L 1989CC 121Cu. In. l4 GAS SOHC Naturally Aspirated 1998
compatible for Ford Escort ZX2 Cool Coupe Coupe 2-Door 2.0L 1989CC 121Cu. In. l4 GAS DOHC Naturally Aspirated 1998
compatible for Ford Escort ZX2 Hot Coupe Coupe 2-Door 2.0L 1989CC 121Cu. In. l4 GAS DOHC Naturally Aspirated 1998
compatible for Mercury Tracer GS Sedan 4-Door 2.0L 1989CC 121Cu. In. l4 GAS SOHC Naturally Aspirated 1998
compatible for Mercury Tracer LS Sedan 4-Door 2.0L 1989CC 121Cu. In. l4 GAS SOHC Naturally Aspirated 1998
compatible for Mercury Tracer LS Wagon 4-Door 2.0L 1989CC 121Cu. In. l4 GAS SOHC Naturally Aspirated 1998
compatible for Mercury Tracer Trio Sedan 4-Door 2.0L 1989CC 121Cu. In. l4 GAS SOHC Naturally Aspirated 1998

OE/Part number

E2197M, SP2197M, P74943M, FG0945, F8CZ9350AA, F8CZ9H307AJ, F8CZ9H307AK

Specification

Condition: Brand New
Type: Fuel Pump Assembly
Drive Type: Electric
Fuel Type: Gasoline
Voltage: 12 V
Flow Rate: ≥31.7
Pressure: 43 PSI
Outlet Type: SAE J2044 2099
Outlet Quantity: 1
Outlet Size：0.37 IN
Material: Plastic
Housing Material: Plastic
Fuel Sending Unit Included: Yes
Fuel Pressure Sensor Included: No
Fuel Level Sensor Included: Yes
Float Included: Yes
Fuel Reservoir Included: Yes
Fuel Strainer Included: Yes
Seal Ring Included : Yes
Internal Or External Strainer: External

Package included

1* Fuel Pump Module Assembly

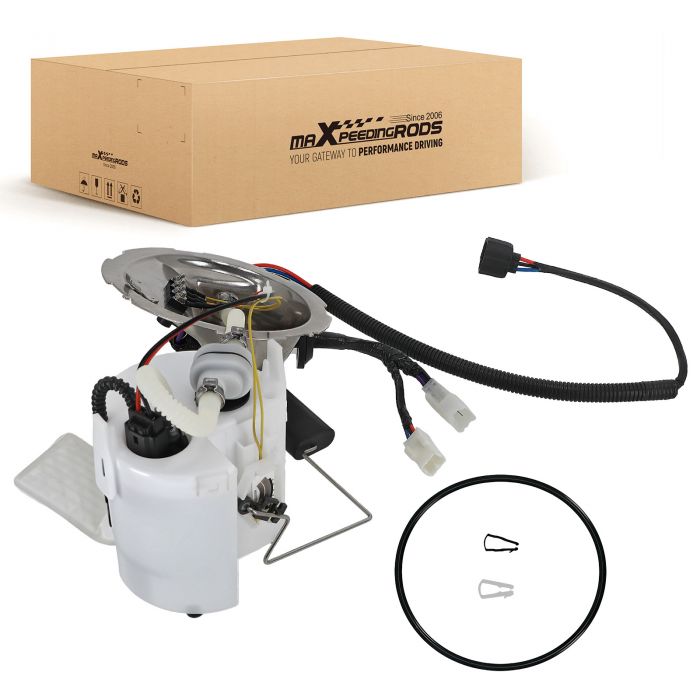

Showing as the picture

Feature

Fuel Pump Assembly Product Characteristics:
1.High-precision automotive grade fuel tank pressure sensor
(CMOS technology and MEMS hybrid technology, modular design, waterproof and dustproof, -40~125°C zero drift, 2% FSO precision measurement, 1ms extremely fast response, to ensure the national six emission standards.)
2.Dual-channel long-life level sensor
(Dual-channel dual-contact design, more stable and longer life.
HERAEUS conduction tape, Dupont resistance, laser cutting process, liquid level
display is more accurate.)
3.Low level design
(The minimum tank liquid level of 10mm still continuously maintains the fuel supply pressure to ensure the safety of driving at low liquid levels.)
4.High dust holding layer filter
(Nylon skeleton one-time injection molding process, low temperature resistance, low resistance, high toughness, long life.
Imported SEFAR mesh fabric, dust holding capacity of 575g/㎡, 60μm particle filtration efficiency of more than 90%.)
5.Platform R&D
(Patented products, standardized design, data and OE are fully interoperable, good stability, high recognizability, low noise, and work efficiency increased by 20%.)

Testing:
100% Fuel Level Sensor Testing
100% Fuel Pump Assembly Drop Test
100% Fuel Pump Assembly Noise Test
100% Durability Test of Fuel Ppump Assembly
100% Fuel Pump Assembly Air Tightness Test

Certifications:
CE
IATF16949
IOS14001

Note

Ensure compatibility by verifying OE numbers before purchase
Installation requires professional tools and expertise
Keep away from moisture and extreme temperatures during storage
