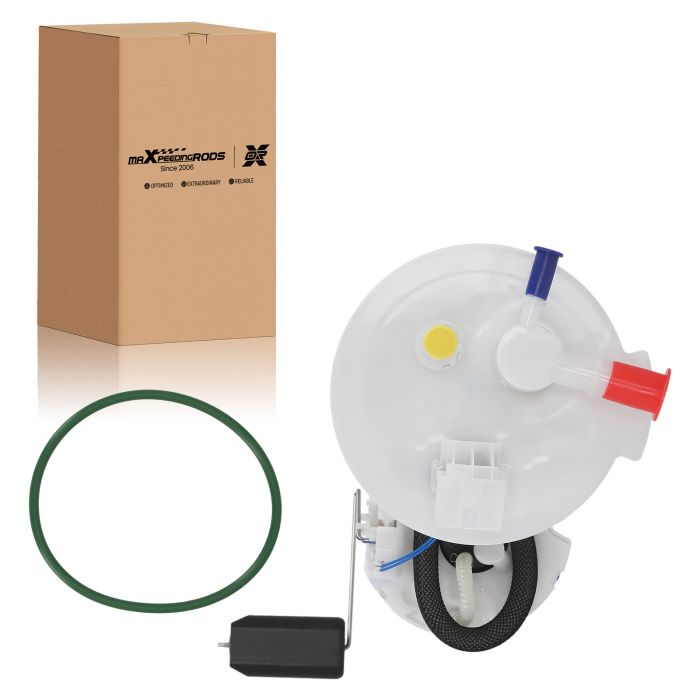

Electric Fuel Pump Module Assembly for 2018-2019 compatible for Chevrolet Equinox 1.5L L4
Application
Compatible for Chevrolet Equinox L 1.5L 1490CC 91Cu. In. L4 GAS E10/E15 GASOLINE (FJW) 2018-2019
compatible for Chevrolet Equinox LS 1.5L 1490CC 91Cu. In. L4 GAS E10/E15 GASOLINE (FJW) 2018-2019
compatible for Chevrolet Equinox LT 1.5L 1490CC 91Cu. In. L4 GAS E10/E15 GASOLINE (FJW) 2018-2019
compatible for Chevrolet Equinox LT 1.6L 1598CC 98Cu. In. L4 DIESEL E10/E15 GASOLINE (FJW) 2018-2019
compatible for Chevrolet Equinox LT 2.0L 1998CC 122Cu. In. L4 GAS E10/E15 GASOLINE (FJW) 2018-2019
compatible for Chevrolet Equinox Premier 1.5L 1490CC 91Cu. In. L4 GAS E15 GASOLINE (FJW) 2018-2019
compatible for Chevrolet Equinox Premier 1.6L 1598CC 98Cu. In. L4 DIESEL E15 GASOLINE (FJW) 2018-2019
compatible for Chevrolet Equinox Premier 2.0L 1998CC 122Cu. In. L4 GAS E15 GASOLINE (FJW) 2018-2019
compatible for GMC Terrain compatible for Denali 2.0L 1998CC 122Cu. In. L4 GAS E15 GASOLINE (FJW) 2018-2019
compatible for GMC Terrain SL 1.5L 1490CC 91Cu. In. L4 GAS E10/E15 GASOLINE (FJW) 2018-2019
compatible for GMC Terrain SLE 1.5L 1490CC 91Cu. In. L4 GAS E10/E15 GASOLINE (FJW) 2018-2019
compatible for GMC Terrain SLE 1.6L 1598CC 98Cu. In. L4 DIESEL E10/E15 GASOLINE (FJW) 2018-2019
compatible for GMC Terrain SLE 2.0L 1998CC 122Cu. In. L4 GAS E10/E15 GASOLINE (FJW) 2018-2019
compatible for GMC Terrain SLT 1.5L 1490CC 91Cu. In. L4 GAS E15 GASOLINE (FJW) 2018-2019
compatible for GMC Terrain SLT 1.6L 1598CC 98Cu. In. L4 DIESEL E15 GASOLINE (FJW) 2018-2019
compatible for GMC Terrain SLT 2.0L 1998CC 122Cu. In. L4 GAS E15 GASOLINE (FJW) 2018-2019
OE/Part number
19417783，MU2406
Specification
Condition: Brand New
Type: Fuel Pump Assembly
Drive Type: Electric
Fuel Type: Gasoline
Voltage: 12 V
Flow Rate: ≥40.9 GPH
Pressure(MPa): 43 PSI
Inlet Type: SAE J2044 2099
Inlet Quantity: 1
Inlet Size：0.31 IN
Outlet Type: SAE J2044 2099
Outlet Quantity: 1
Outlet Size：0.37 IN
Material: Plastic
Housing Material: Plastic
Fuel Sending Unit Included: Yes
Fuel Pressure Sensor Included: No
Fuel Level Sensor Included: Yes
Float Included: Yes
Fuel Reservoir Included: Yes
Fuel Strainer Included: Yes
Seal Ring Included : Yes
Internal Or External Strainer: Internal
Package included
1X Fuel Pump Module Assembly (as shown in the pictures)
Feature
Fuel Pump Assembly Product Characteristics:
1.High-precision automotive grade fuel tank pressure sensor
(CMOS technology and MEMS hybrid technology, modular design, waterproof and dustproof, -40~125°C zero drift, 2% FSO precision measurement, 1ms extremely fast response, to ensure the national six emission standards.)
2.Dual-channel long-life level sensor
(Dual-channel dual-contact design, more stable and longer life.
HERAEUS conduction tape, Dupont resistance, laser cutting process, liquid level
display is more accurate.)
3.Low level design
(The minimum tank liquid level of 10mm still continuously maintains the fuel supply pressure to ensure the safety of driving at low liquid levels.)
4.High dust holding layer filter
(Nylon skeleton one-time injection molding process, low temperature resistance, low resistance, high toughness, long life.
Imported SEFAR mesh fabric, dust holding capacity of 575g/㎡, 60μm particle filtration efficiency of more than 90%.)
5.Platform R&D
(Patented products, standardized design, data and OE are fully interoperable, good stability, high recognizability, low noise, and work efficiency increased by 20%.)
Testing:
100% Fuel Level Sensor Testing
100% Fuel Pump Assembly Drop Test
100% Fuel Pump Assembly Noise Test
100% Durability Test of Fuel Ppump Assembly
100% Fuel Pump Assembly Air Tightness Test
Certifications:
CE
IATF16949
IOS14001
Note
It only fit the model with Front-Wheel Drive, not for the 4-Wheel Drive
E10 GASOLINE FUEL TYPE or E15 GASOLINE FUEL VEHICLE (FJW)
