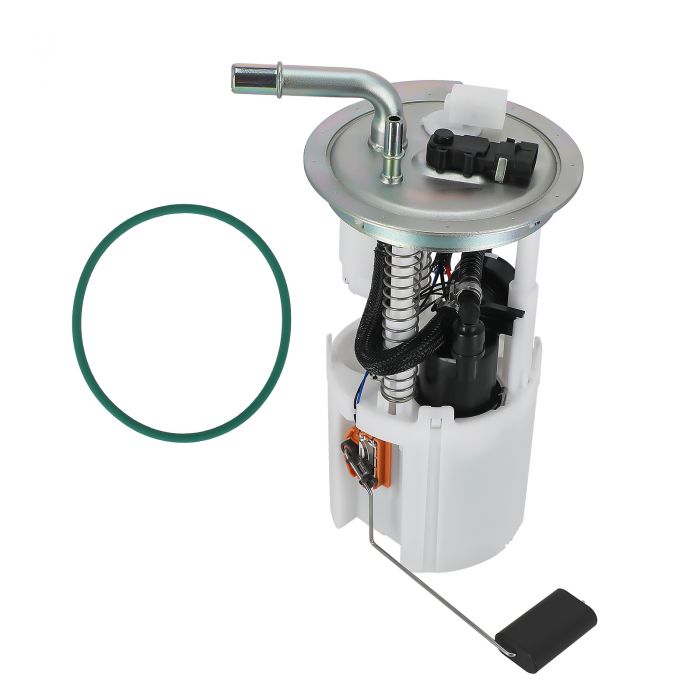

Electric Fuel Pump Module Assembly compatible for Chevrolet Trailblazer 2005-2007 L6 V8

Application

Compatible for Buick Rainier L6 4.2L 2005-2007
compatible for Buick Rainier V8 5.3L 2005-2007
compatible for Chevrolet SSR V8 6.0L 2005-2006
compatible for Chevrolet Trailblazer L6 4.2L 2005-2007
compatible for Chevrolet Trailblazer V8 5.3L 2005-2007
compatible for Chevrolet Trailblazer V8 6.0L 2006-2007
compatible for GMC Envoy L6 4.2L 2005-2007
compatible for GMC Envoy V8 5.3L 2005-2007
compatible for Isuzu Ascender L6 4.2L 2005-2007
compatible for Isuzu Ascender V8 5.3L 2005-2006
compatible for Saab 9-7X L6 4.2L 2005-2007
compatible for Saab 9-7X V8 5.3L 2005-2007

OE/Part number

E3707M, FG0515,19153374, 8191533740, P76217M, SP6006M

Specification

Condition: Brand New
Type: Fuel Pump Assembly
Drive Type: Electric
Fuel Type: Gasoline
Voltage: 12V
Flow Rate: ≥42.2GPH
Pressure: 43.51 PSI
Inlet Type: Quick Connect
Inlet Quantity: 1
Inlet Diameter：0.623 inch
Outlet Type: Quick Connect
Outlet Quantity: 1
Outlet Diameter：0.374 inch
Material: Metal
Housing Material: Plastic
Fuel Sending Unit Included: Yes
Fuel Pressure Sensor Included: Yes
Fuel Level Sensor Included: Yes
Float Included: Yes
Fuel Reservoir Included: Yes
Fuel Strainer Included: Yes
Seal Ring Included : Yes
Internal Or External Strainer: Internal
Placement on Vehicle: Rear (Fuel Tank)

Package included

1* Fuel Pump Module Assembly
Showing as the picture

Feature

Fuel Pump Assembly Product Characteristics:
1.High-precision automotive grade fuel tank pressure sensor
(CMOS technology and MEMS hybrid technology, modular design, waterproof and dustproof, -40~125°C zero drift, 2% FSO precision measurement, 1ms extremely fast response, to ensure the national six emission standards.)
2.Dual-channel long-life level sensor
(Dual-channel dual-contact design, more stable and longer life.
HERAEUS conduction tape, Dupont resistance, laser cutting process, liquid level
display is more accurate.)
3.Low level design
(The minimum tank liquid level of 10mm still continuously maintains the fuel supply pressure to ensure the safety of driving at low liquid levels.)
4.High dust holding layer filter
(Nylon skeleton one-time injection molding process, low temperature resistance, low resistance, high toughness, long life.
Imported SEFAR mesh fabric, dust holding capacity of 575g/㎡, 60μm particle filtration efficiency of more than 90%.)
5.Platform R&D
(Patented products, standardized design, data and OE are fully interoperable, good stability, high recognizability, low noise, and work efficiency increased by 20%.)

Testing:
100% Fuel Level Sensor Testing
100% Fuel Pump Assembly Drop Test
100% Fuel Pump Assembly Noise Test
100% Durability Test of Fuel Ppump Assembly
100% Fuel Pump Assembly Air Tightness Test

Certifications:
CE
IATF16949
IOS14001

Note

Check your car's voltage, only 12V is compatible
Ensure compatibility by verifying OEM numbers before installation
Installation may require professional tools and expertise
