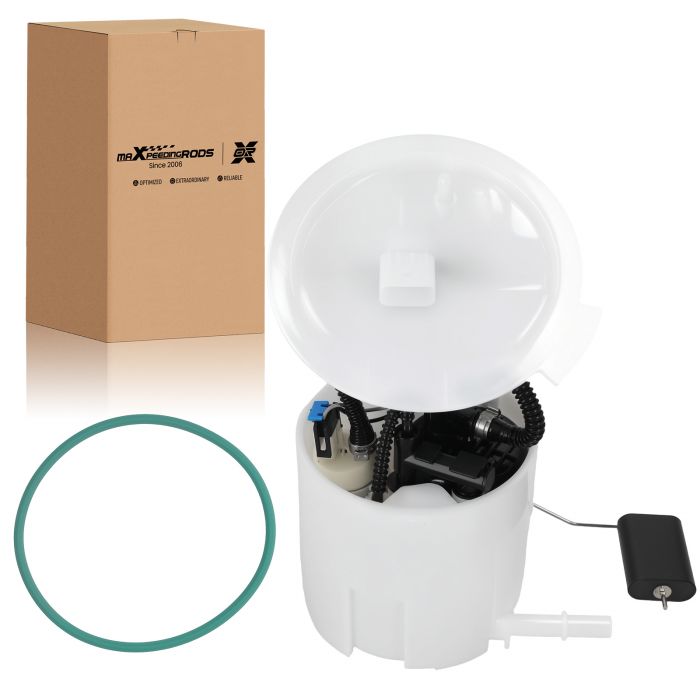

Electric Fuel Pump Module Assembly compatible for Ford Mustang V6 3.7L V8 5.0L 2011-2014

SKU

300200012859

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Application

Compatible for Ford Mustang V6 3.7L 2011-2014
compatible for Ford Mustang V8 5.0L 2011-2014

OE/Part number

E2589M,SP2468M,P76856M,FG1557,BR3Z9H307B,CR3Z9H307A,CR3Z9H307B,FG1557-4

Specification

Drive Type: Electrical
Fuel Type: Gasoline
Voltage(V): 12
Flow Rate(Gallons/Hour): ≥42
Pressure(MPa): 77
Weight(kg): 1.4656
Inlet Type: Strainer
Inlet Quantity: 1
Outlet Type: Quick Connect
Quick coupling: 1
Fuel Sending Unit Included: Yes
Fuel Pressure Sensor Included: No
Fuel Level Sensor Included: Yes
Float Included: Yes
Fuel Reservoir Included: Yes
Fuel Strainer Included: Yes
Seal Ring Included : Yes
Placement on Vehicle: Rear
Material: Steel(Q235A)

Package included

1X Fuel Pump Module Assembly
(as shown in the picture)

Feature

1.Raw Material for key parts from same supplier as OE
2.Fuel Level Sensor Wet Durability Testing ≥ 1 Million times
3.Pressure Valve Durability Test ≥ 500,000 times
4.High temperature durability testing≥ 600 hours(60℃)
5.100% test

Note

1.Professional Installation Is Highly Recommended(Attached installation manual).
2.Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.
