Electric Fuel Pump Module Assembly compatible for Saab 9-3 2.0L L4 2003-2011 12805467

Application

Compatible for Saab 9-3 2.0L 1998CC 122Cu. In. l4 GAS DOHC Turbocharged compatible for FWD 2003-2011

OE/Part number

E8489M,E8489MN,P76289M,SP5004M,FG0514,12805467, 22666246, 22666426, 24425084

Specification

Condition: Brand New
Type: Fuel Pump Assembly
Drive Type: Electric
Fuel Type: Gasoline
Voltage: 12V
Flow Rate: ≥44.9GPH
Pressure: 43.51 PSI
Fuel Sending Unit Included: Yes
Fuel Pressure Sensor Included: Yes
Fuel Level Sensor Included: Yes
Float Included: Yes
Fuel Reservoir Included: Yes
Fuel Strainer Included: Yes
Seal Ring Included : Yes
Internal Or External Strainer: Internal
Placement on Vehicle: Rear (Fuel Tank)

Package included

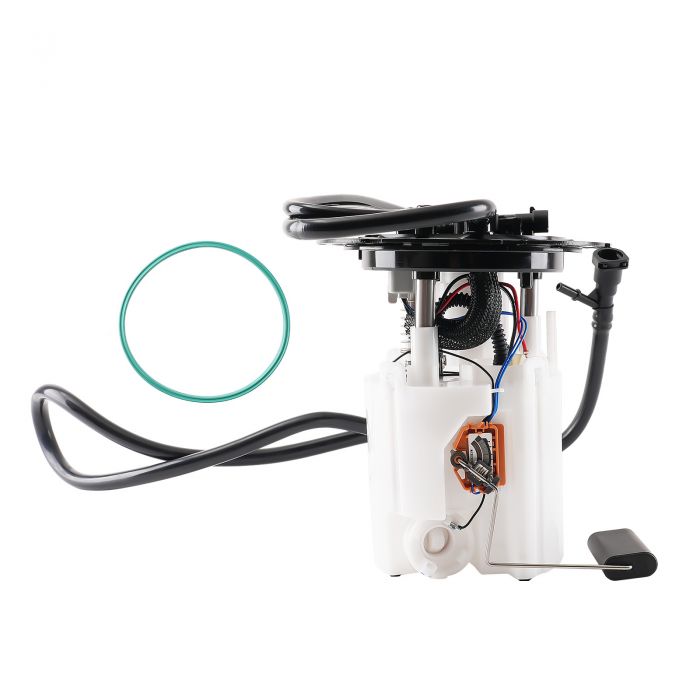

1* Fuel Pump Module Assembly w/Float Arm,Seal
Showing as the picture

Feature

Fuel Pump Assembly Product Characteristics:
1.High-precision automotive grade fuel tank pressure sensor
(CMOS technology and MEMS hybrid technology, modular design, waterproof and dustproof, -40~125°C zero drift, 2% FSO precision measurement, 1ms extremely fast response, to ensure the national six emission standards.)
2.Dual-channel long-life level sensor
(Dual-channel dual-contact design, more stable and longer life.
HERAEUS conduction tape, Dupont resistance, laser cutting process, liquid level
display is more accurate.)
3.Low level design
(The minimum tank liquid level of 10mm still continuously maintains the fuel supply pressure to ensure the safety of driving at low liquid levels.)
4.High dust holding layer filter
(Nylon skeleton one-time injection molding process, low temperature resistance, low resistance, high toughness, long life.
Imported SEFAR mesh fabric, dust holding capacity of 575g/㎡, 60μm particle filtration efficiency of more than 90%.)
5.Platform R&D
(Patented products, standardized design, data and OE are fully interoperable, good stability, high recognizability, low noise, and work efficiency increased by 20%.)

Testing:
100% Fuel Level Sensor Testing
100% Fuel Pump Assembly Drop Test
100% Fuel Pump Assembly Noise Test
100% Durability Test of Fuel Ppump Assembly
100% Fuel Pump Assembly Air Tightness Test

Certifications:
CE
IATF16949
IOS14001

Note

Check the attached picture and compare with the part to be replaced
Verify the listed part numbers for compatibility
Find the correct year, make, model, trim, and engine in the model chart
Contact us freely for any questions, and we will reply within 24 hours
Ensure compatibility by checking vehicle details before purchase
Professional installation is highly recommended
