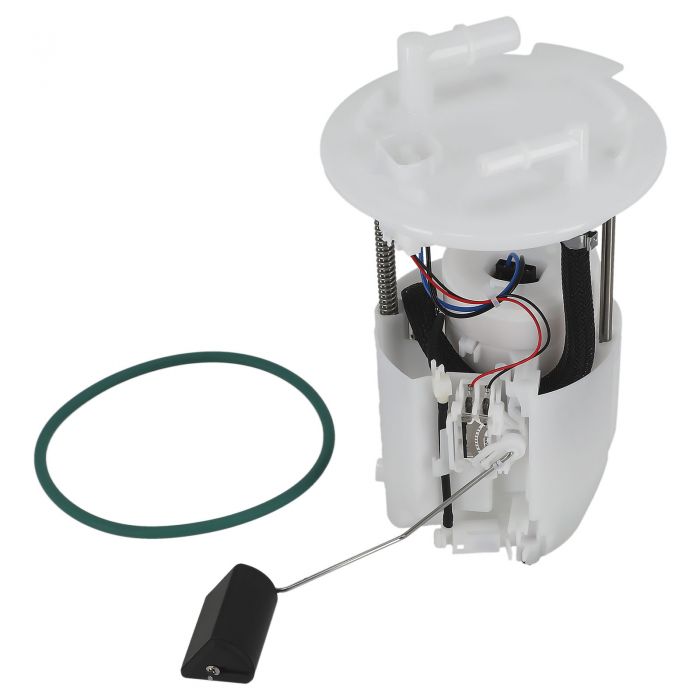

Electric Fuel Pump Module compatible for Ford Edge compatible for Lincoln MKX 2011-2014 V6 3.7L E2578M

SKU

300200011493

Skip to the beginning of the images gallery

Application

Compatible for Ford Edge V6 3.5L 2011-2015
compatible for Ford Edge V6 3.7L 2011-2014
compatible for Lincoln MKX V6 3.7L 2011-2014

OE/Part number

BT4Z9H307D, DT4Z9H307A, E2578M, SP2467M, P76760M, FG1311

Specification

Drive Type: Electrical
Fuel Type: Petrol
Voltage(V): 12
Flow Rate(Gallons/Hour): ≥38.3
Pressure(MPa): 0.3
Weight(kg): 1.21-1.65
Inlet Type: /
Inlet Quantity: /
Outlet Type: Quick Connector
Outlet Quantity: 1
Material: Plastic
Housing Material: Plastic
Fuel Sending Unit Included: Yes
Fuel Pressure Sensor Included: No
Fuel Level Sensor Included: Yes
Float Included: Yes
Fuel Reservoir Included: Yes
Fuel Strainer Included: Yes
Seal Ring Included : Yes
Placement on Vehicle: Rear
Package included: 1X Fuel Pump Module Assembly (as shown in the pictures)

Feature

1.Raw Material for key parts from same supplier as OE
2.Fuel Level Sensor Wet Durability Testing ≥ 1 Million times
3.Pressure Valve Durability Test ≥ 500,000 times
4.High temperature durability testing≥ 600 hours(60℃)
5.100% test

Note

1.Professional Installation Is Highly Recommended(Attached installation manual).
2.Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.
