Compatible for Honda Civic EM2 2001-2005 Struts Racing Coilovers Kits lowering kit

Introduction

max-SNA coilovers are designed as an entry level for street use.
It features with full length height adjustable which offers you a lowered stance, improved performance for your daily use vehicle.

Application

Compatible for Honda civic VII DX/EX/GX/HX/LX/Si Coupe (EM2) 2001-2005
compatible for Honda civic VII DX/EX/GX/HX/LX/Si Sedan (ES, ET) 2001-2005
NOTE： not fit for Hybrid

Specification

Top mounts: Front pillow ball top mounts
Damping: Not available
Adjustable hight: Yes
Adjustable camber plate: No
Spring rate Front: 10 kg/mm (560 lbs/in)
Spring rate Rear: 6 kg/mm (336 lbs/in)
Adjustable height: Yes lowering 1" to 3"
Shock type: Twin tube
Spring Preload: 7-10 mm
Color: Golden

Package included

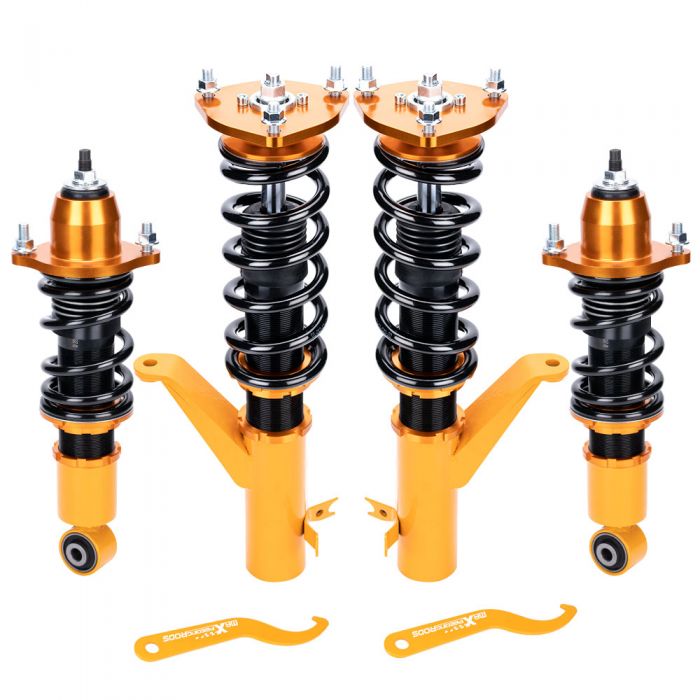

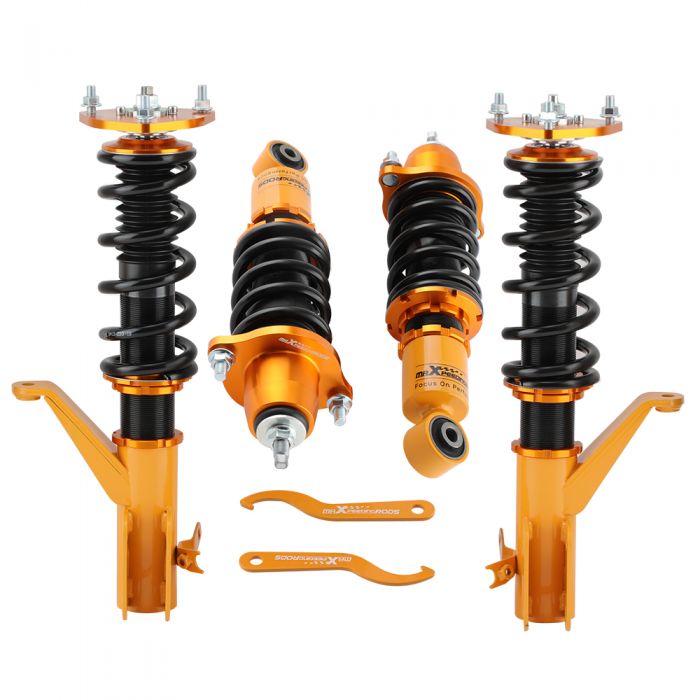

complete coilovers 2 front and 2 rear

Dimension

weight: 23.1Kg
size: 63*51*21cm

Feature

Lowered height adjustment from 1''-3'' which allow lower center of gravity and also add a more aggressive stance.
Twin-Tube structure allows sufficient stroke within the shock absorber.
Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
Separate height adjustment does not affect damper stroke.
Height can be adjusted with coilovers installed on the vehicle.
High Tensile performance spring – STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
Height Adjustment tools included.
Most pieces in our Coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.
Full rebuildable.

Note

OE springs are suggested during installation for front coilover
