Titanize Bielas Connecting Rods compatible for Toyota Auris compatible for Corolla E180 1.2L ARP2000 4340

Application

Compatible for Toyota NR 8NR-FTS 1.2L engine
compatible for Toyota Auris compatible for Corolla E180 1.2L 8NR-FTS VVT-iW 2012–2018
compatible for Toyota C-HR 1.2L 8NR-FTS VVT-iW Turbo I4 2017–present
compatible for Toyota Corolla (E170) Levin 1.2L 8NR-FTS 2013-2018

Specification

Material: Titanizing Forged 4340 aircraft chrome moly quality steel for racing

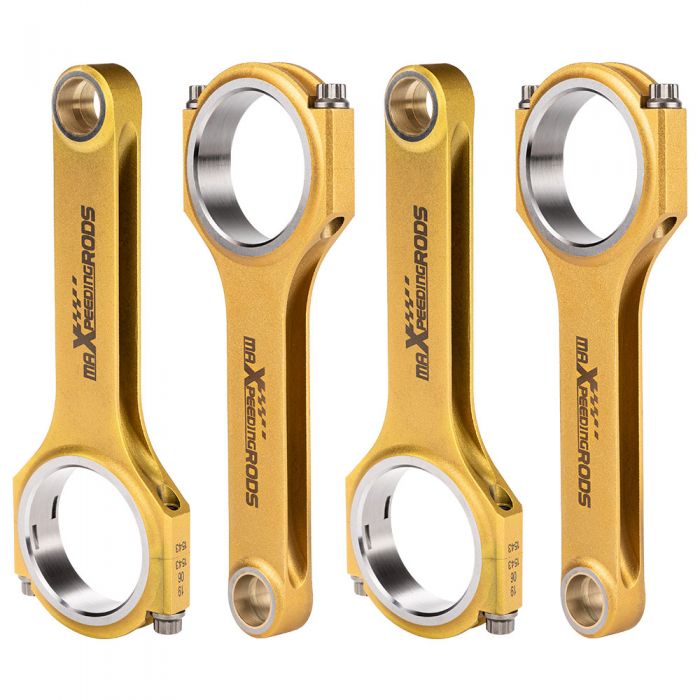

Quantity: 4 Pieces a set as showing in picture
Bolts: Including Genuine ARP 2000 3/8" bolts(Note: Extra cost for upgrading to ARP L19 bolts)
Weight Tolerance: Balanced to +/- 1 gram in set
Warranty: one year warranty.

Dimensions

Center to center length: 149.2mm
Big end diameter: 45mm
Small end diameter: 20mm
Big end width: 18.7mm
Small end width: 18.7mm

Feature

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine
- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin

Note

- Professional installation is highly recommended (No Instruction Included)
- Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
