Front 2x Air Spring Bags Mounting Brackets compatible for Chevy C10 Trucks 2WD 1963-1972

SKU

300200029452

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Application

Compatible for Chevy C10 Trucks 2WD 1963-1972

Specification

Condition: Brand New
Chassis Type: All standard type Chassis
Placement on Vehicle: Front left and right
Max loading：5200 LBS
Air spring---
Design height: 160 mm
Stroke: 155 mm
MIN. Compressed: 90 mm
Max. Extended: 245 mm
Minimum height of whole kit: 140 mm
Maximum height of whole kit: 295 mm

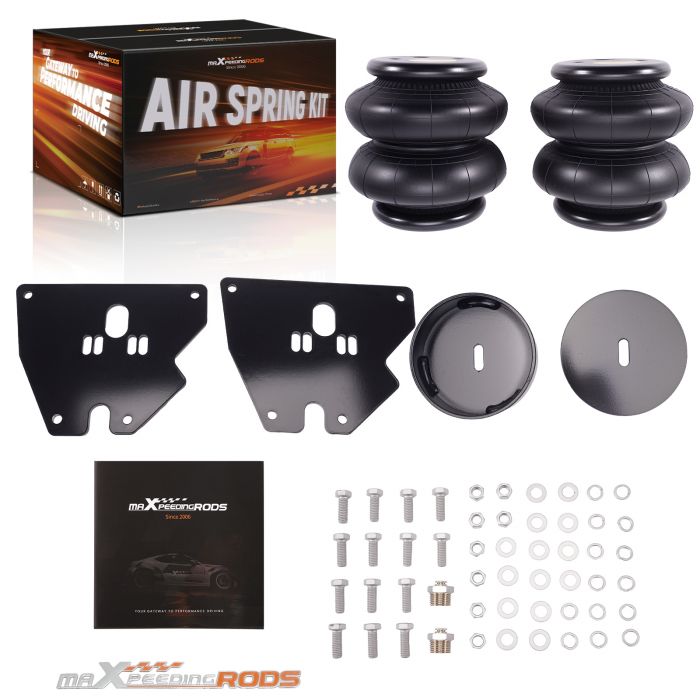

Package includes（as the picture shows）:
2 x Air spring
4 x Mounting bracket
Mounting bolts and Air fittings

Feature

1、Stress Test Over 5,000,000 Times：Durable and Safe

2、Burst Pressure≥2.0MPa：High Compressive Strength and Less Noise

3、100% Air Tightness Guarantee

4、Temperature Range ≥ -40℃/ ≤ 70℃ (≥ -40°F/≤ 158°F)：Premium Natural Rubber Material

5、 4-Layer reinforcement construction: Enhances air spring load support.

6、Use high-quality steel with high load-bearing capacity and long life.

7、Excellent and practical bolt-on installation.

8、Safe carrying capacity and stability

9、Restore the original ride height and improve ride quality

10、Ensure our driving comfort and reduce tire wear.

11、Dacromet is a new surface treatment technology that has excellent corrosion resistance compared to traditional electroplating processes.
